Re-imagine what you know about tip trailers.

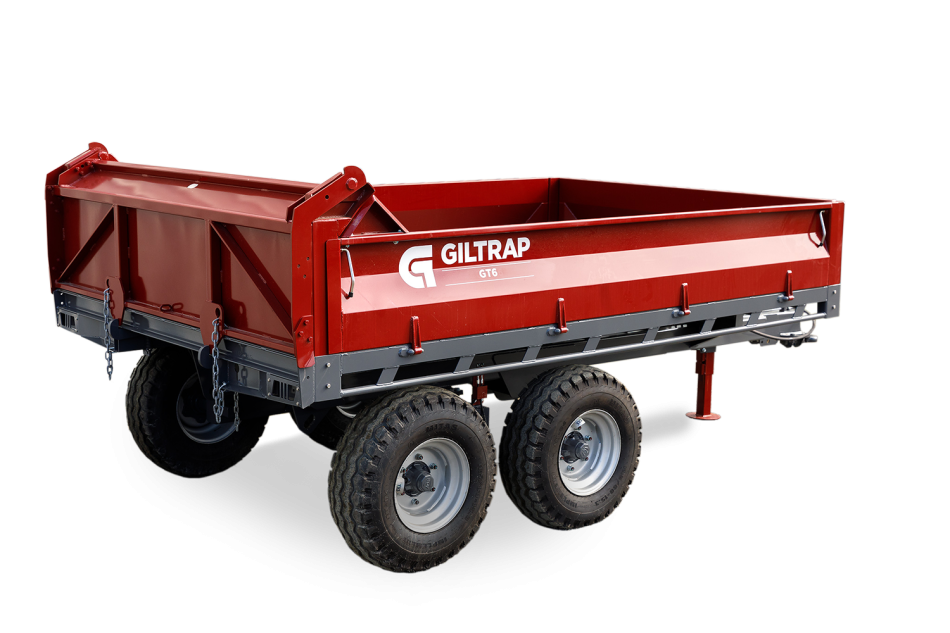

We re-visited and re-engineered the tip trailer concept to launch the GT series with a tougher, smarter and more user-friendly design totally suited to NZ farming conditions.
Offered in various capacities ranging from 6 tonnes to 20 tonnes, a larger deck size offers up to 15% more capacity than the previous models, and newly designed side boards slam shut and self-lock with clever heavy-duty latches.
No products found.
Key features are also illustrated below. In addition the Giltrap GT Series has:

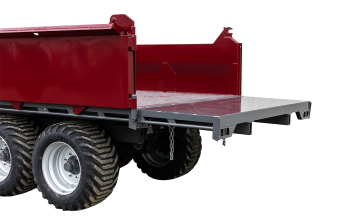

- A side-hinged tailgate kit can be retro-fitted for more flexibility
- Removable front board for carrying longer loads
- Timber or steel deck - choose what suits you - all for the same price

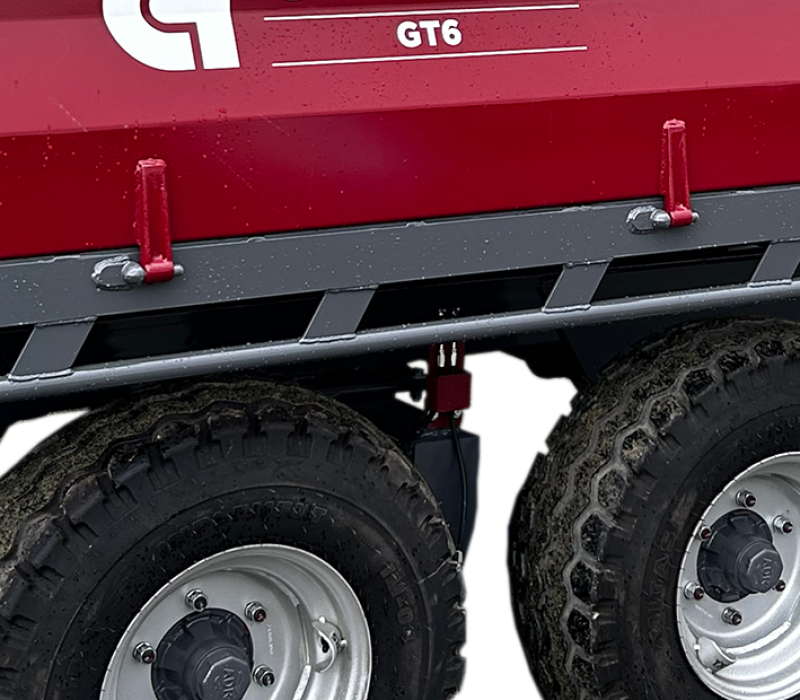

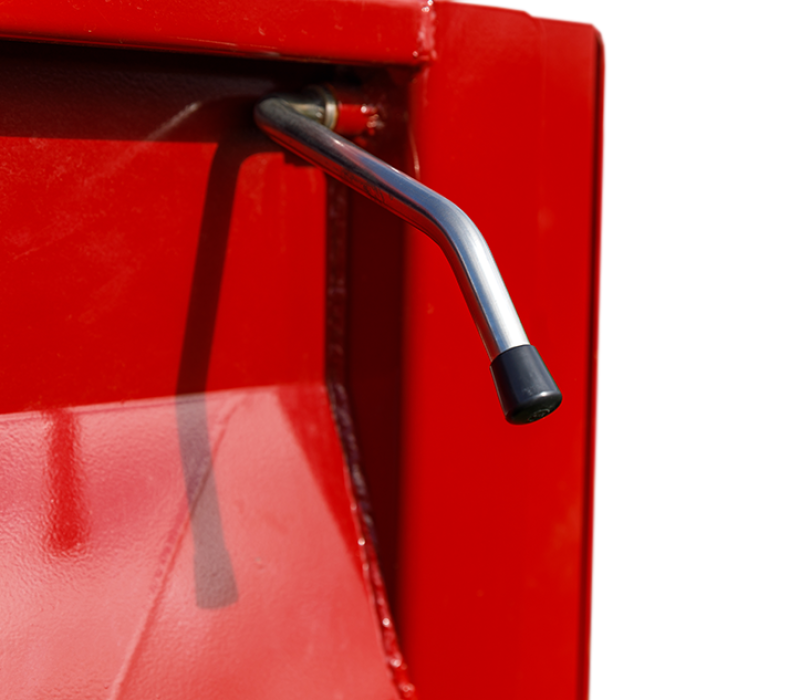

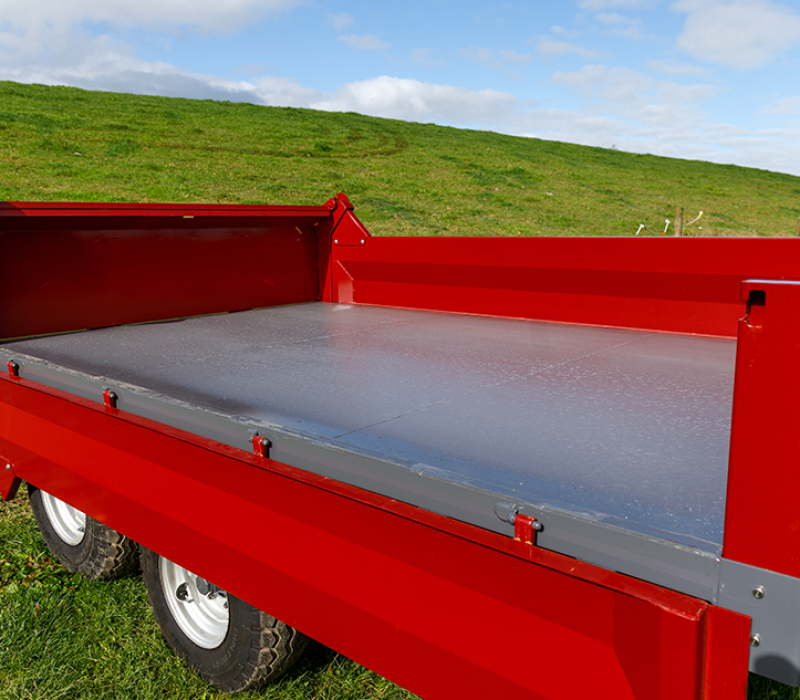

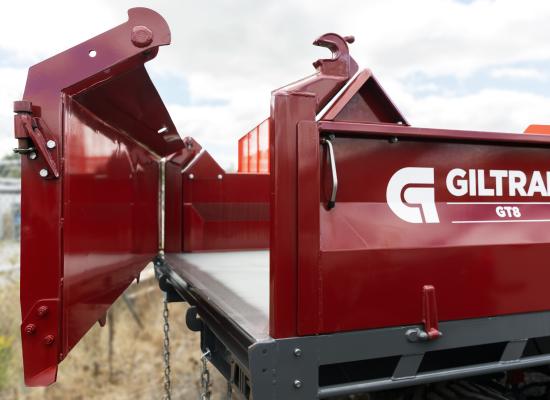

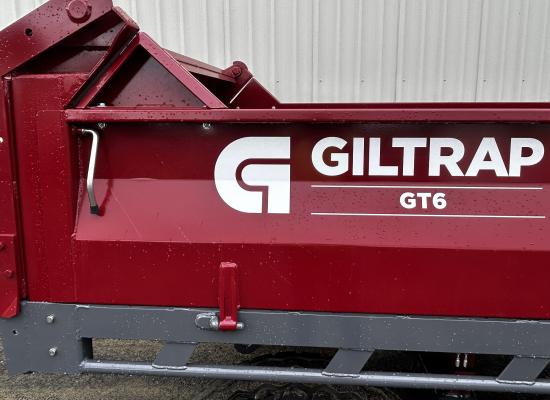

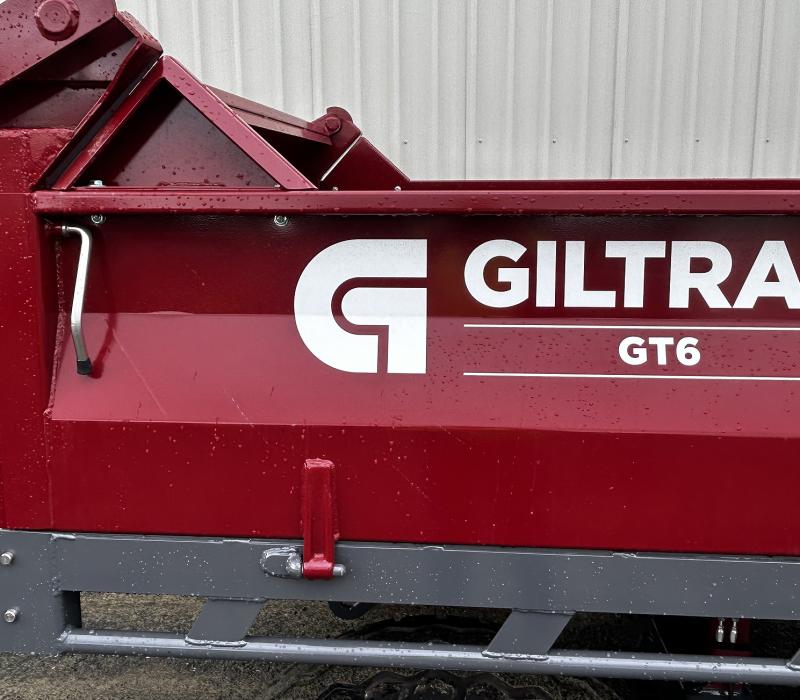

Slam shut latches are incredibly secure and easy to use. The clever design locks tighter with trailer movement

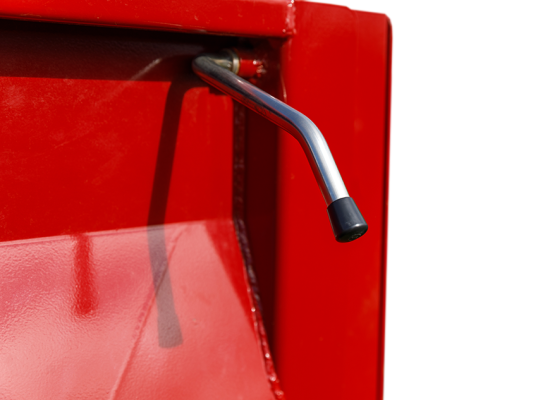

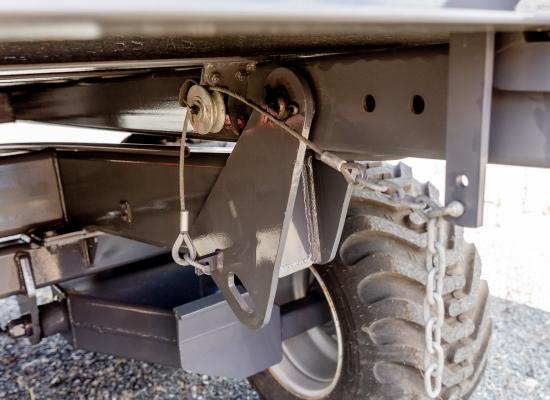

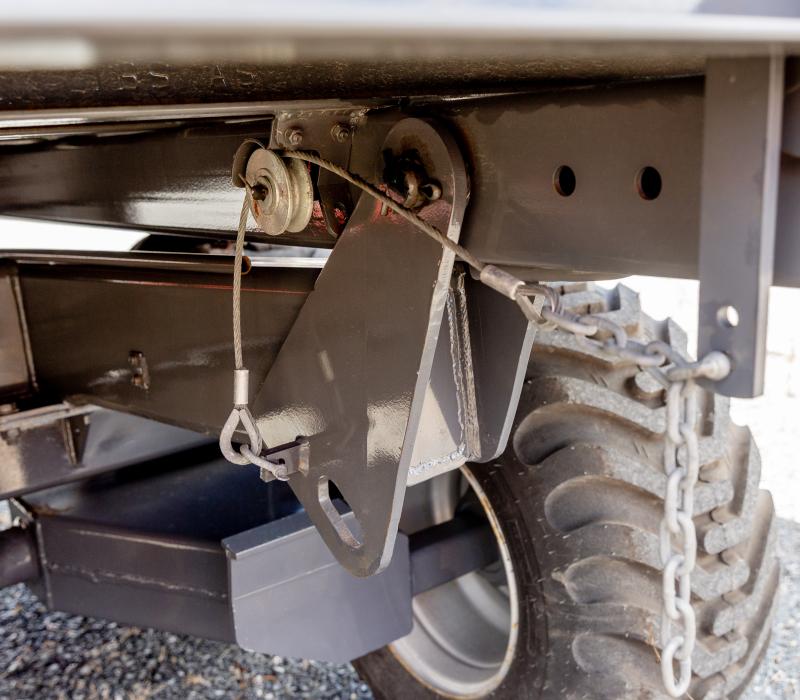

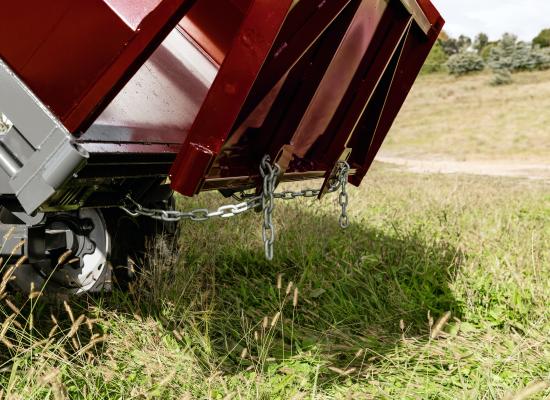

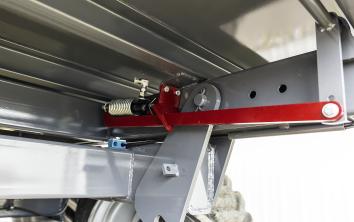

The tailgate has an auto-trip latch system which is actuated with a wire rope or an optional hydraulic cylinder and trips the gate automatically at a preset deck angle

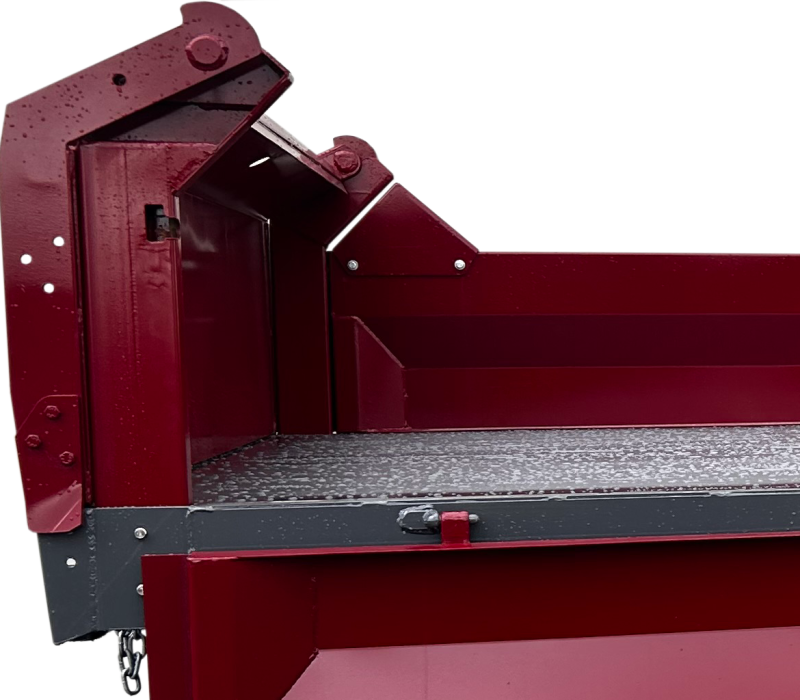

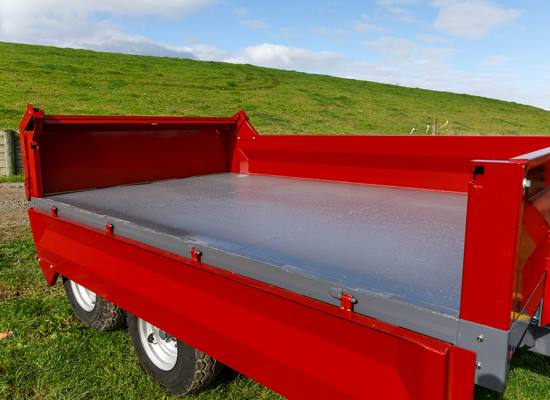

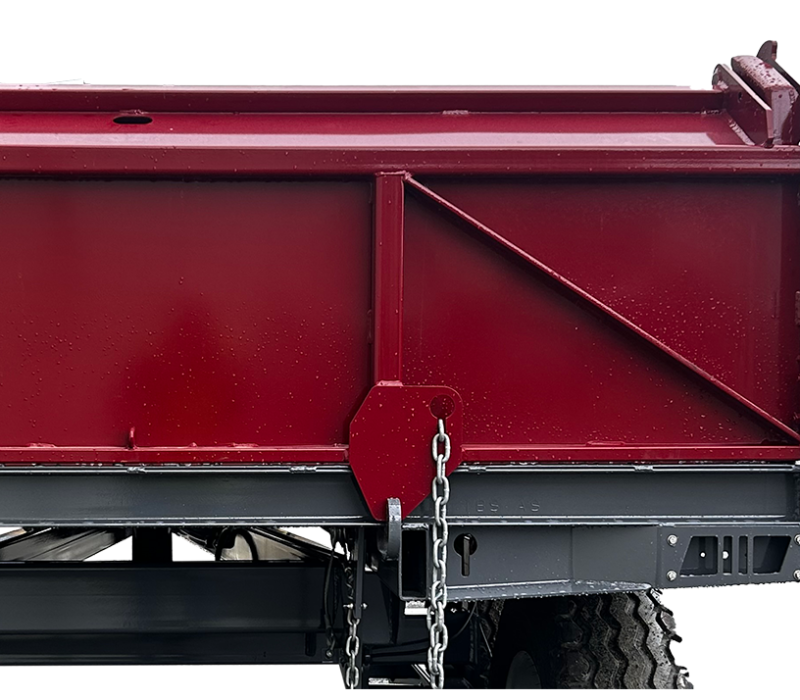

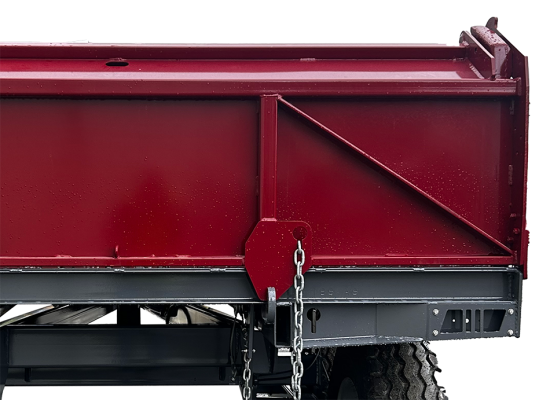

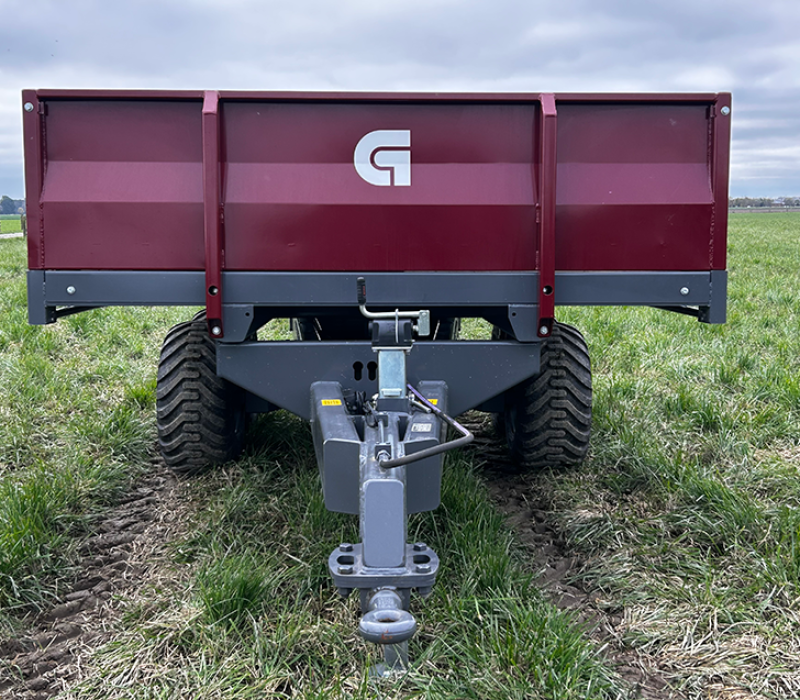

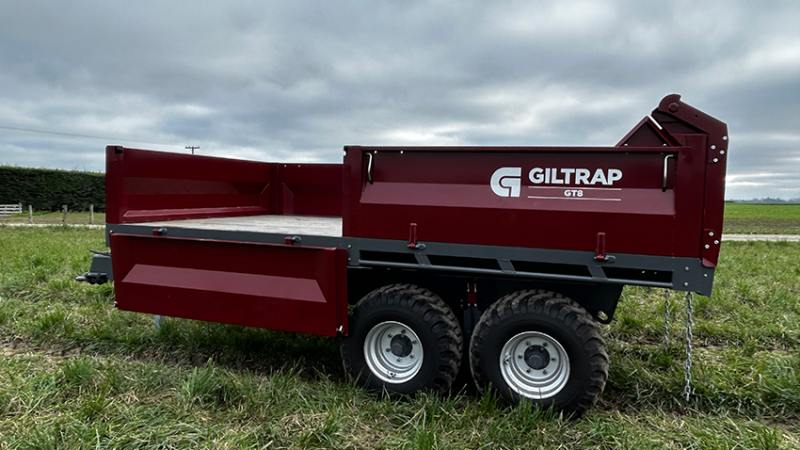

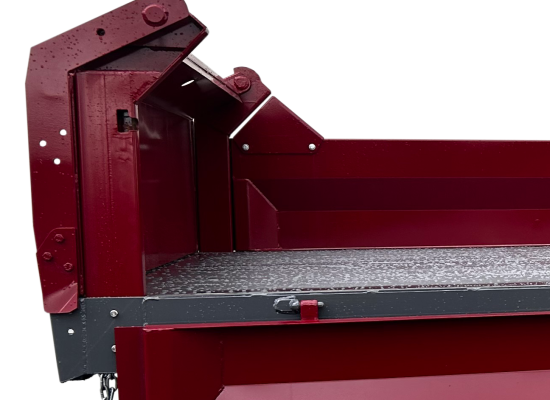

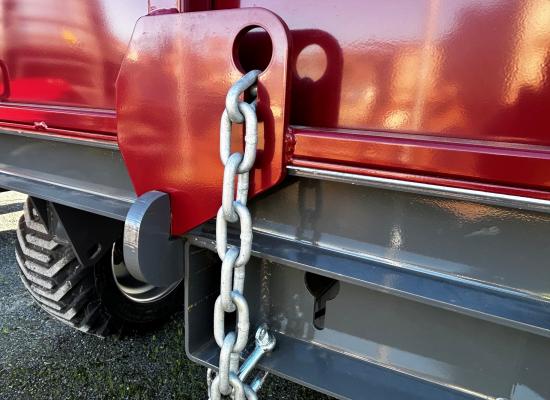

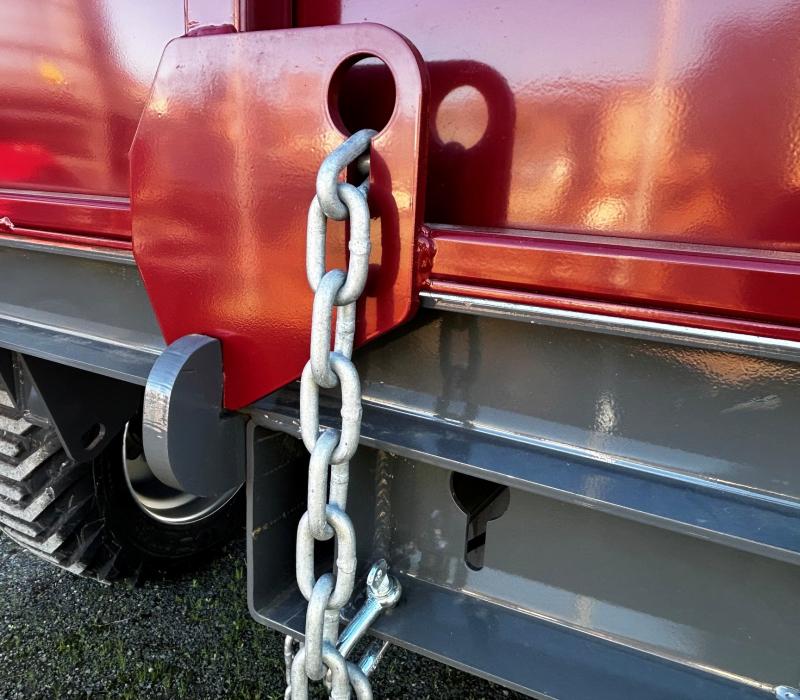

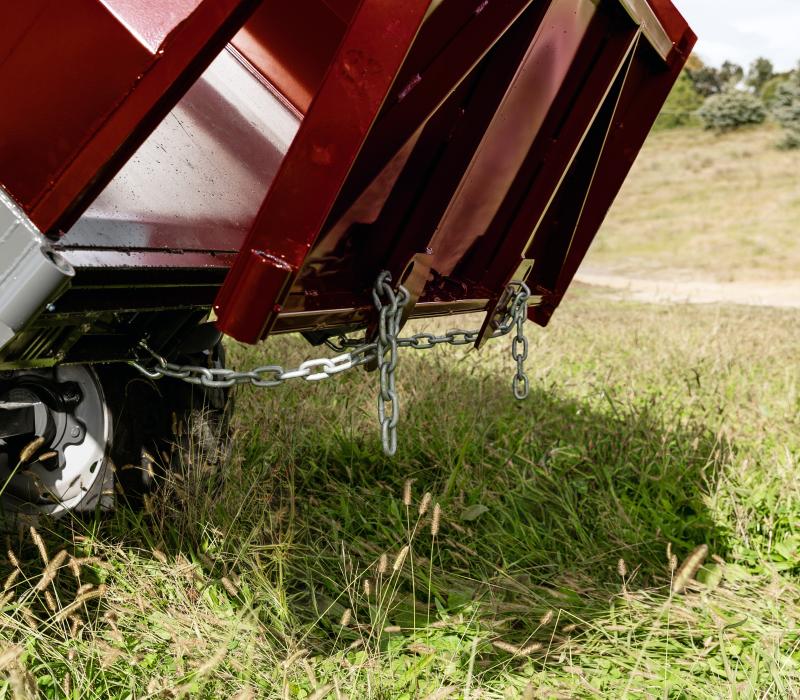

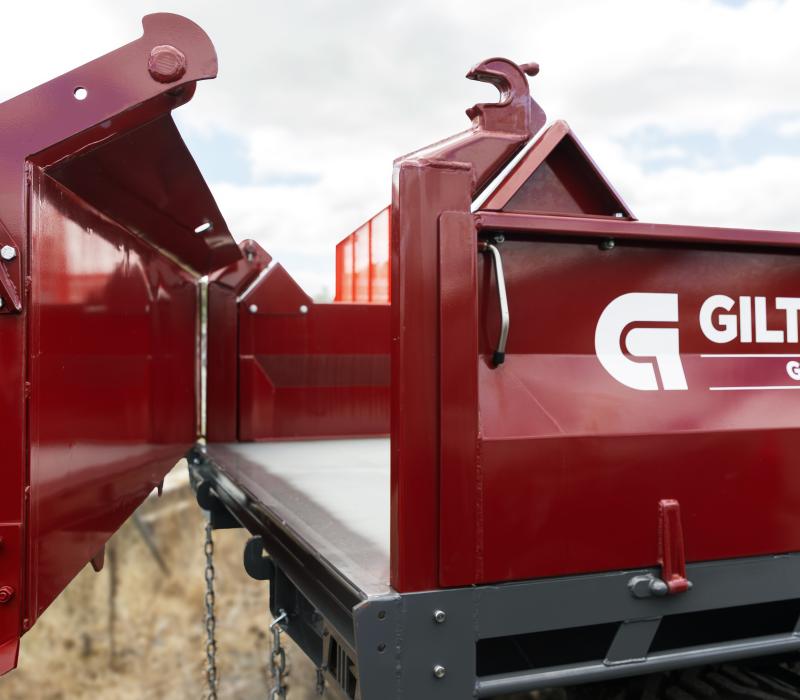

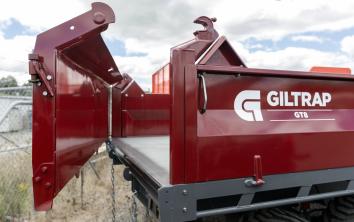

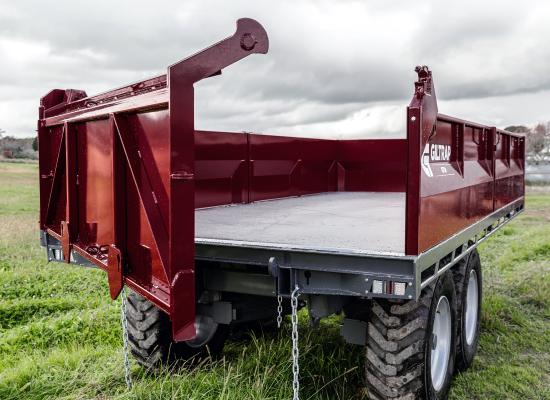

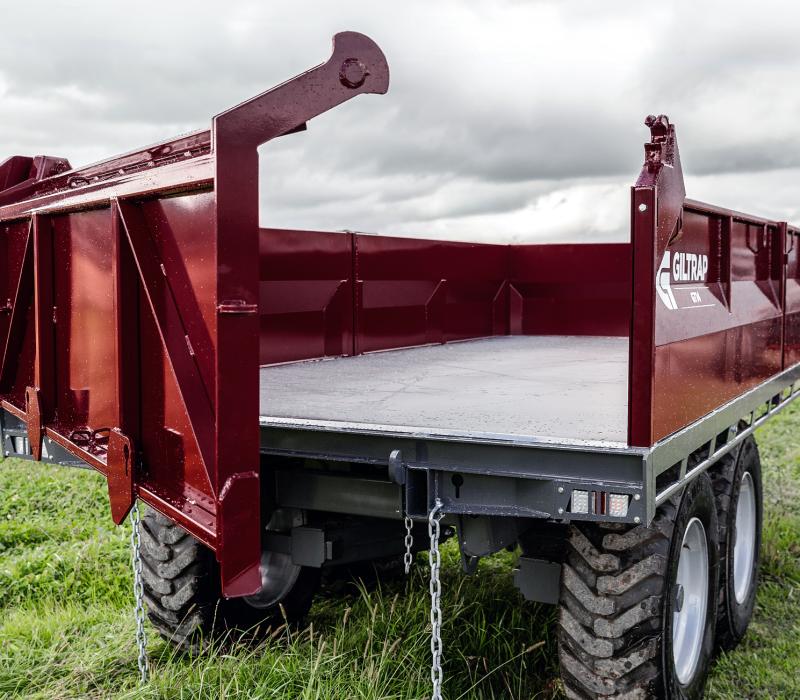

The free-standing tailgate means you can drop or remove the sides without taking the tailgate off. The large rear support posts also hold the sides rigid when the tailgate is removed.

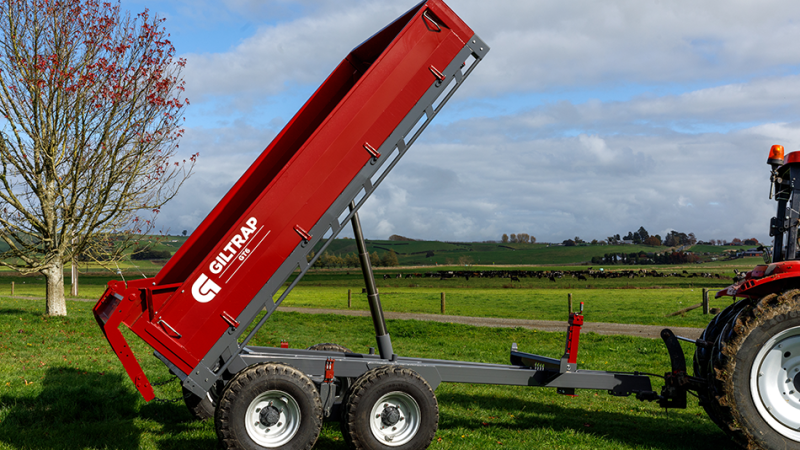

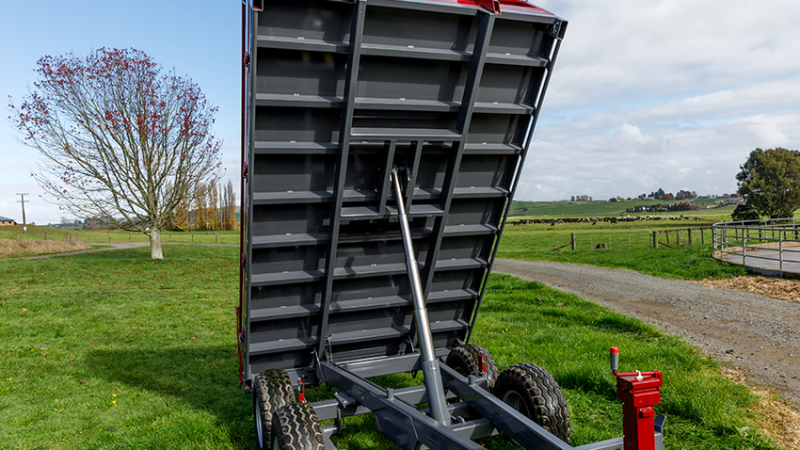

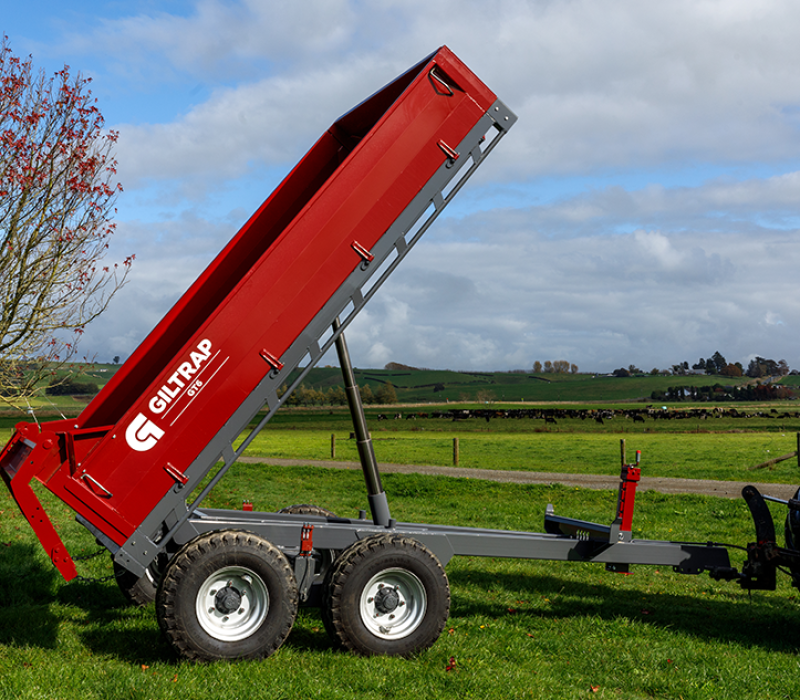

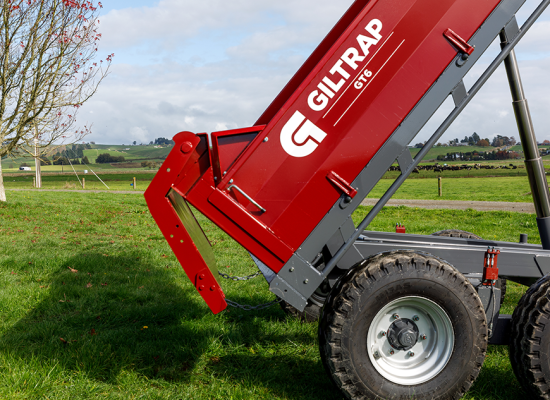

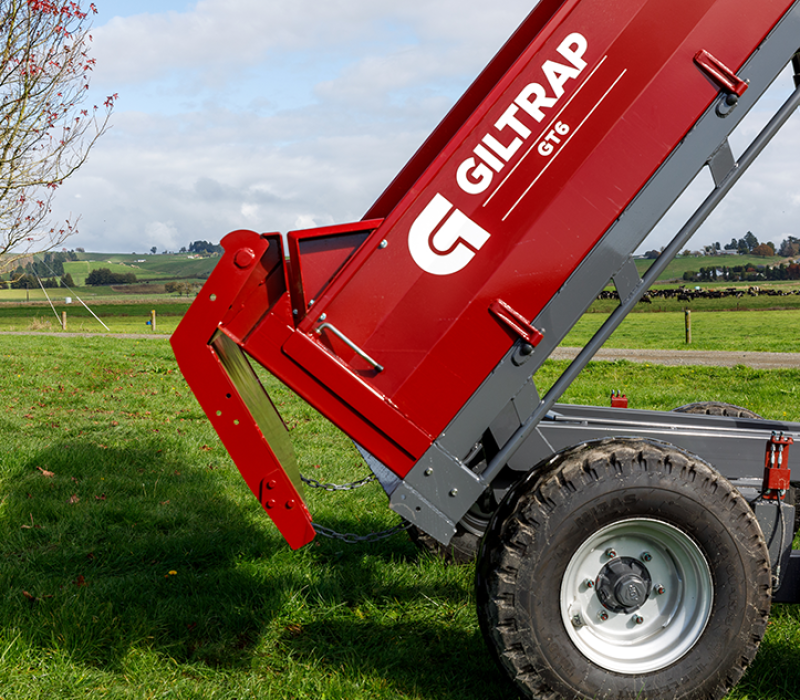

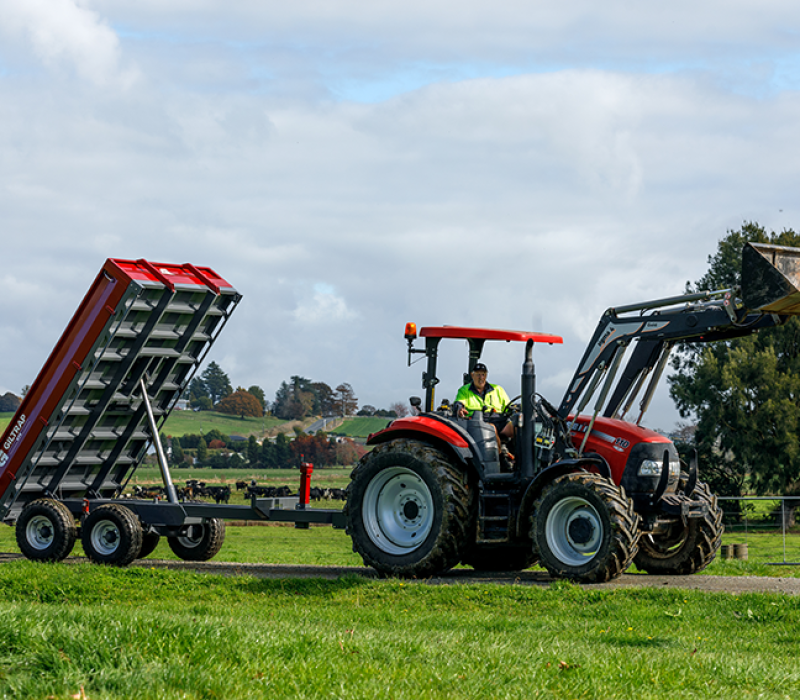

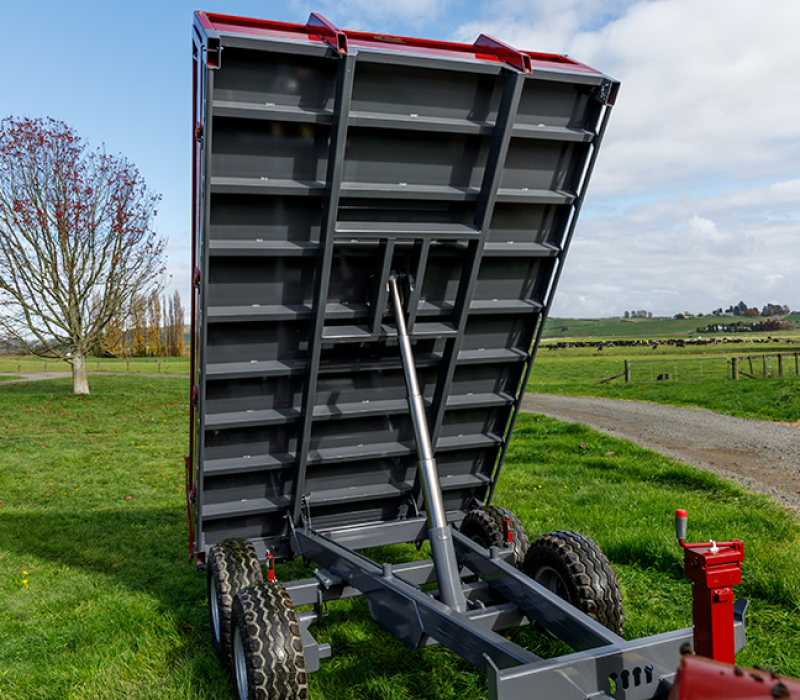

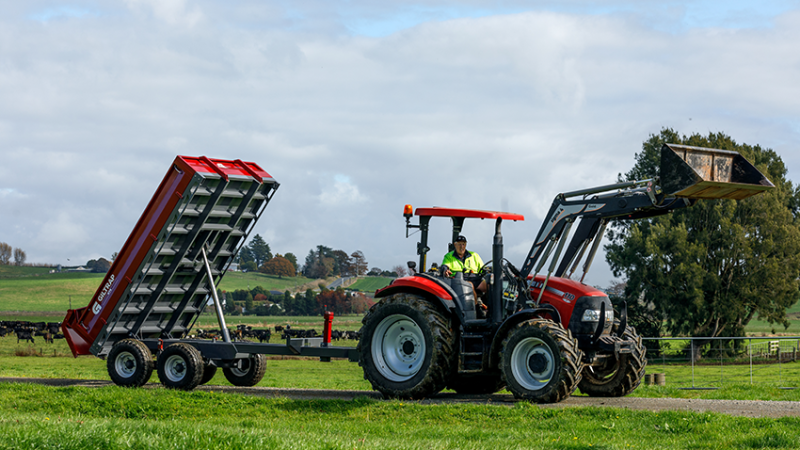

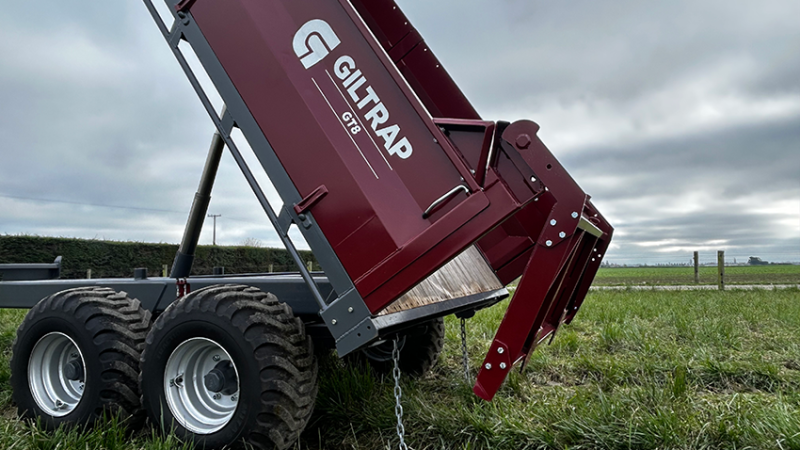

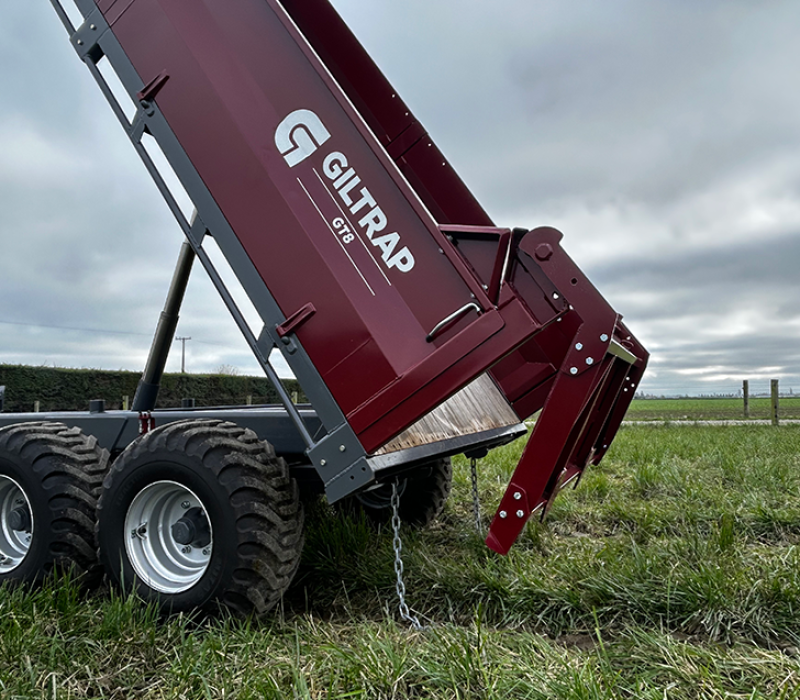

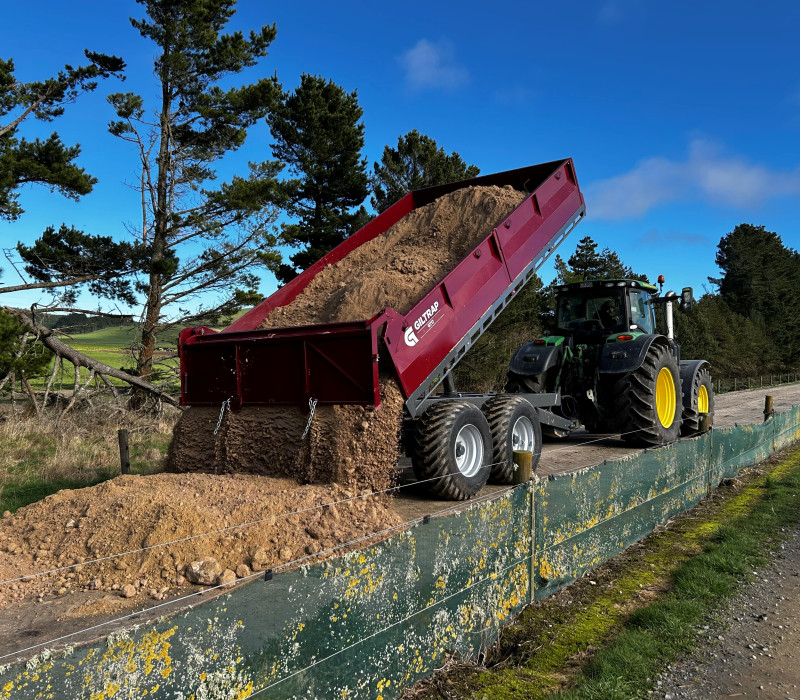

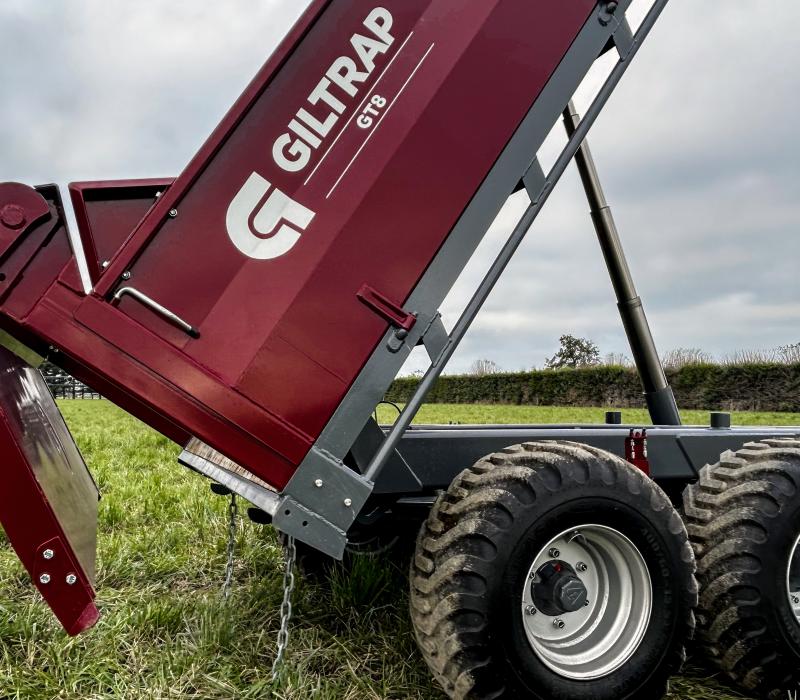

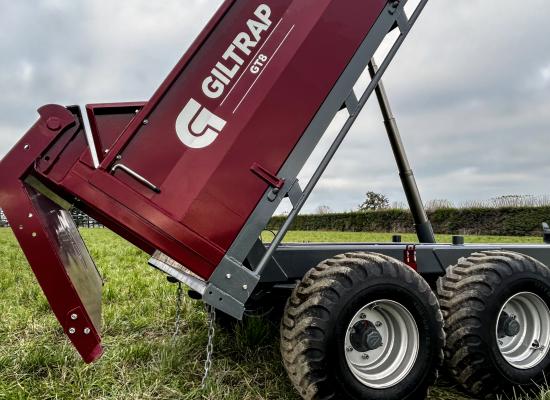

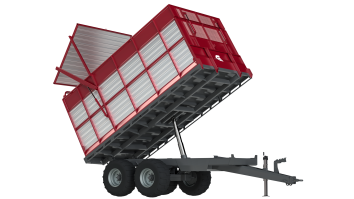

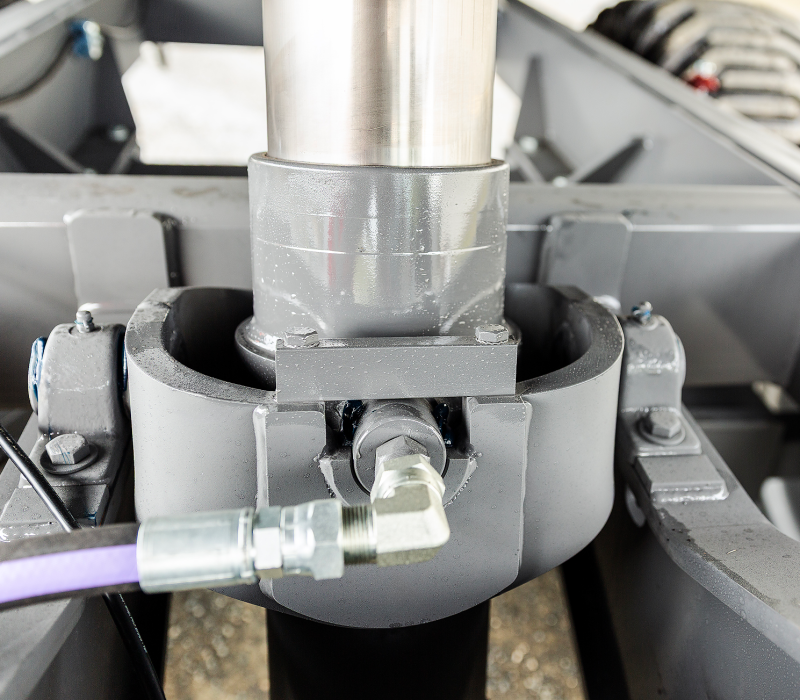

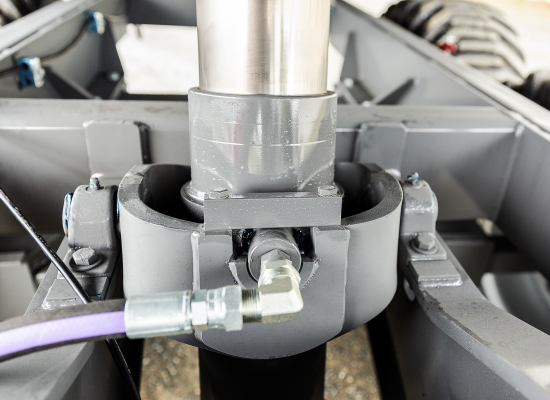

A steep 57-degree tip angle makes sure everything slides off, and our rear pivot placement gives you the best tipping clearance when the deck is raised. Great for building stockpiles and means you won't get stuck or bulldoze the ground

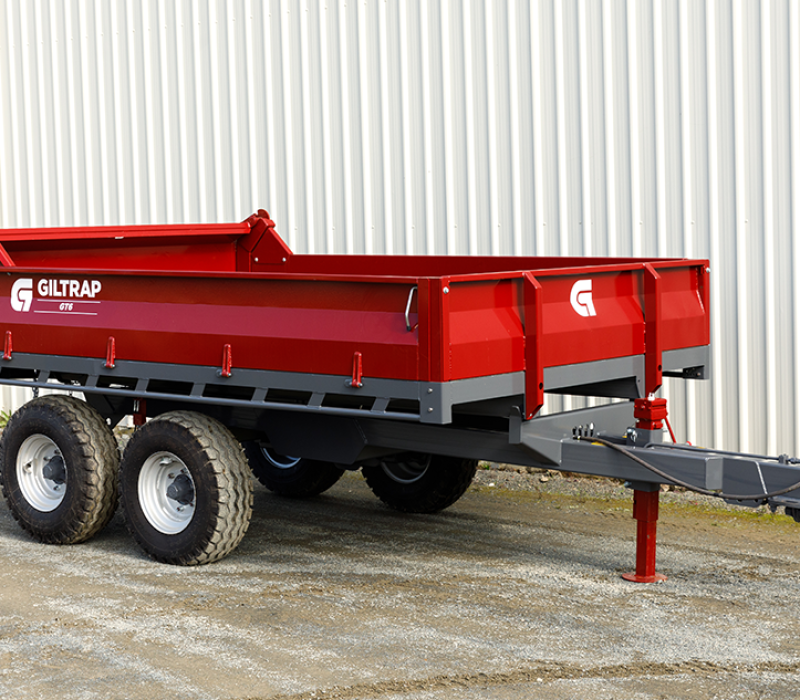

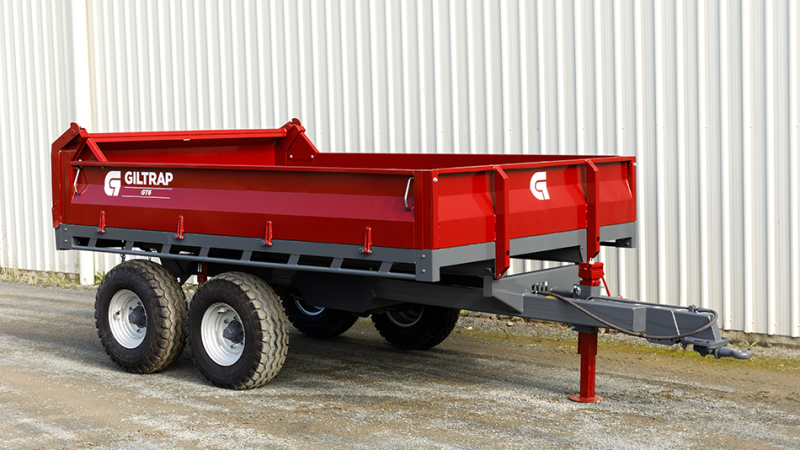

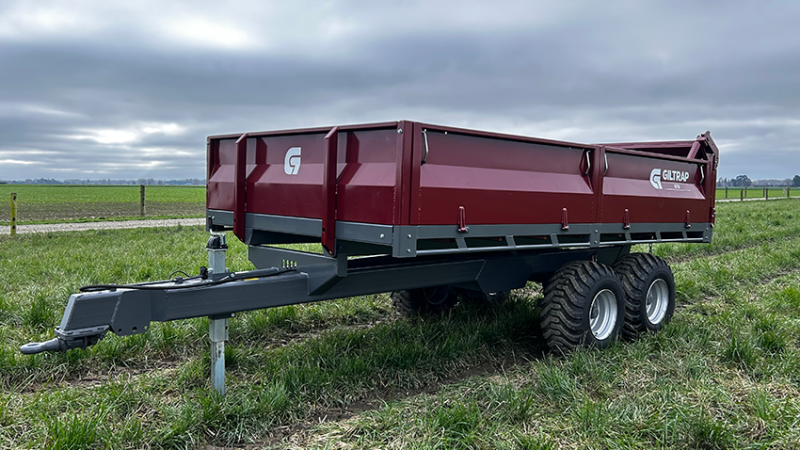

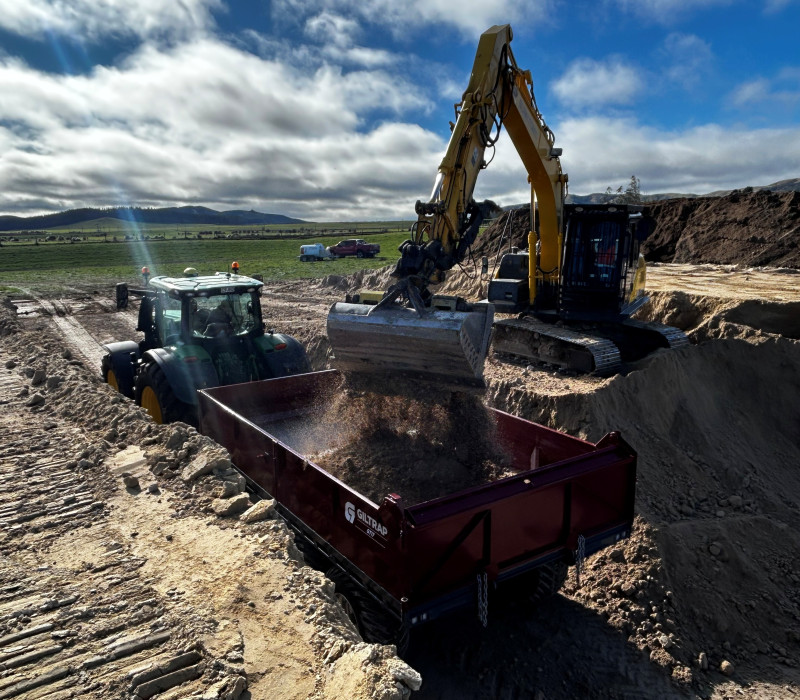

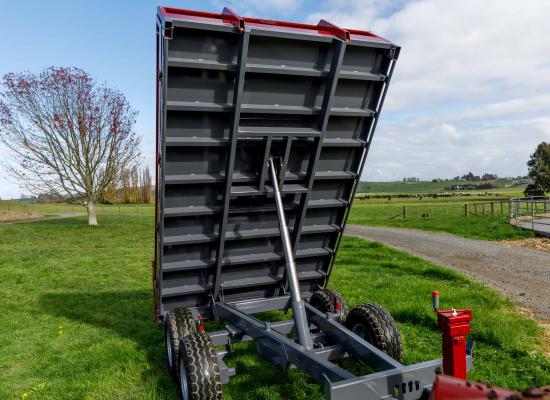

Large decks and high sides allows you to carry more volume and easily lift the rated tonnage. We design all trailers to lift about 30% more than the stated load

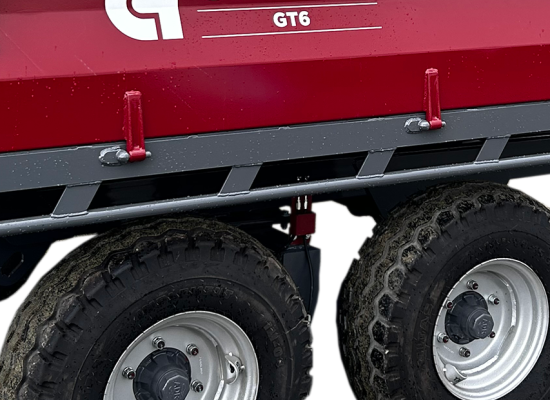

Heavy-duty rope rails let you securely tie down your loads

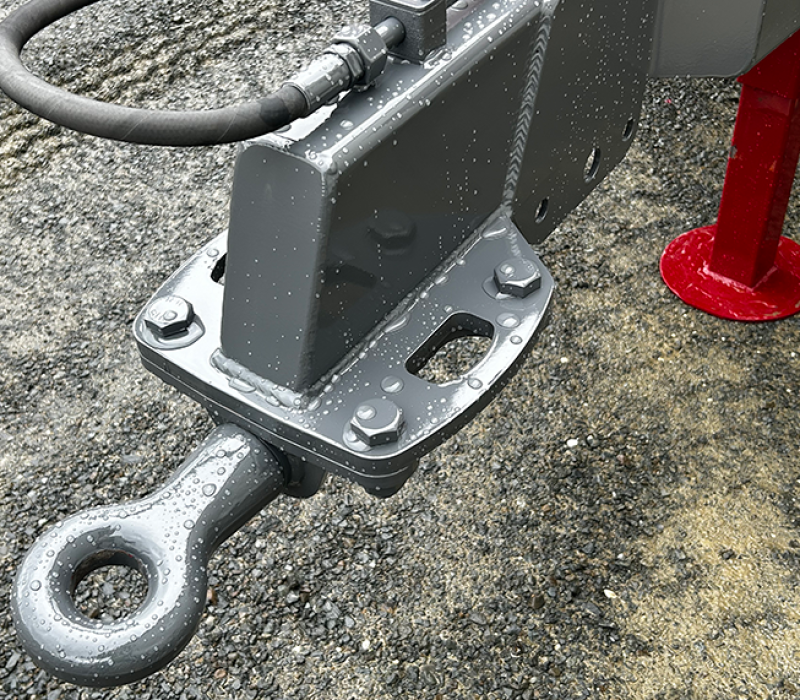

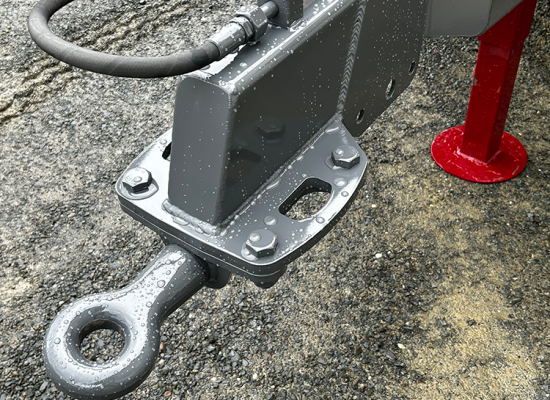

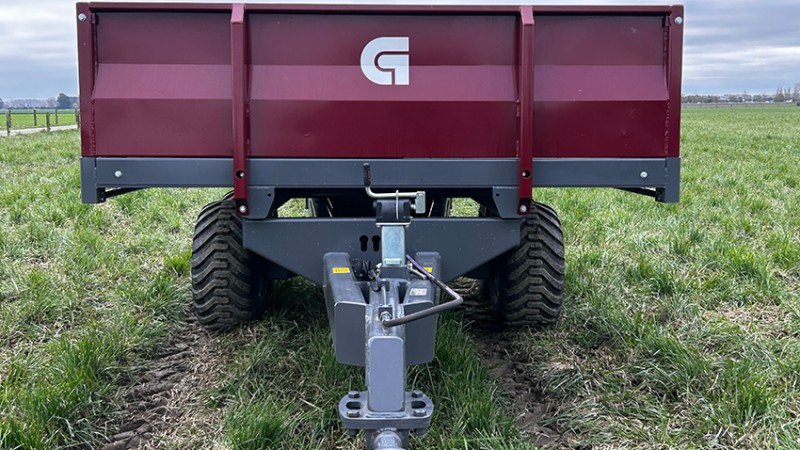

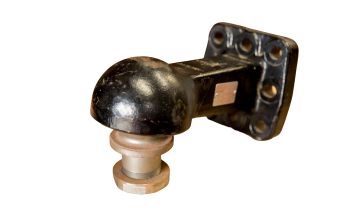

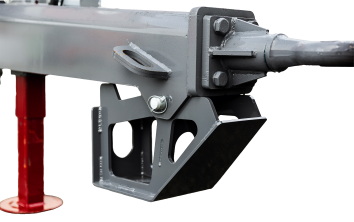

The swivel towing eye is flange mounted. Simple to swap for a K80 ball hitch or easily replace for maintenance
GT Series Specifications
| GT6 | GT8 | GT10 | GT14 | GT17 | GT20 | |
|---|---|---|---|---|---|---|
| Deck (l x w) (m) | 3.6 x 2.4 | 4.2 x 2.4 | 4.7 x 2.4 | 5.0 x 2.4 | 5.25 x 2.7 | 5.5 x 2.7 |
| Volume (m³) | 3.6 | 5.7 | 6.4 | 7.9 | 9.5 | 11.5 |
| Lift capacity (t) | 6 | 8 | 10 | 14 | 17 | 20 |
| Tipping angle (degrees) | 57 | 57 | 57 | 57 | 57 | 57 |
| Ram type (telescopic) | 4 stage | 4 stage | 5 stage | 5 stage | 4 stage | 6 stage |
| Sideboard height (mm) | 460 | 600 | 600 | 700 (2 piece) | 700 (2 piece) | 800 (2 piece) |
| Tare weight (kg) | 1825 | 2590 | 3160 | 3600 | TBC | TBC |

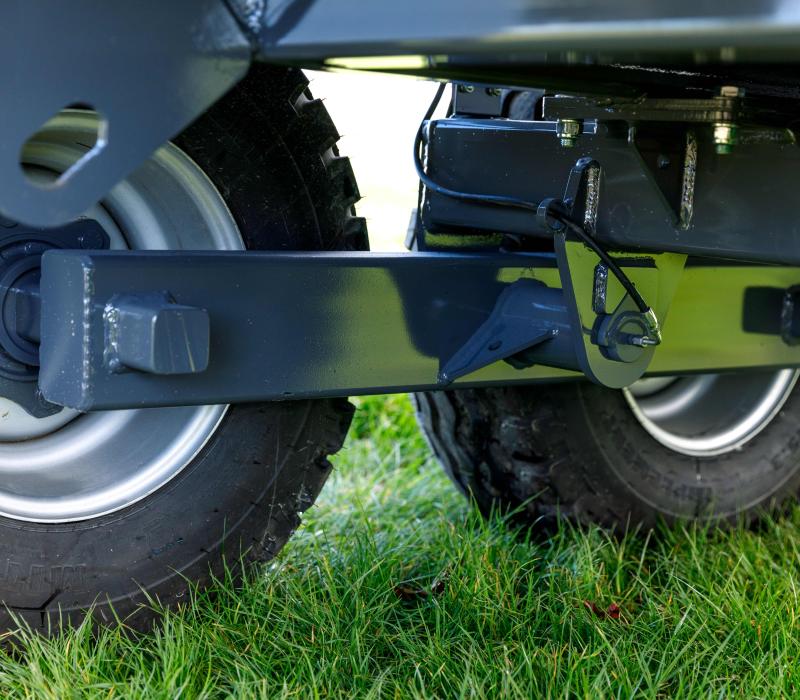

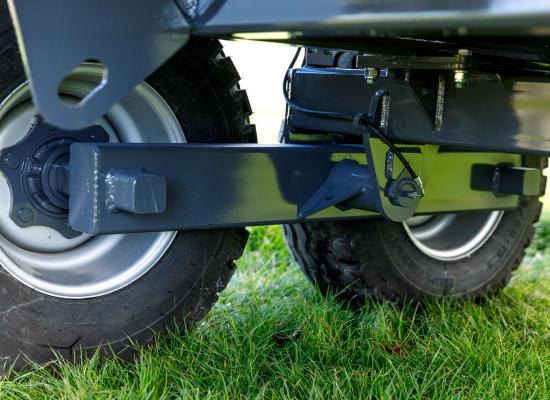

| Axle size (mm) | 60 (6 stud) | 70 (6 stud) | 80 (8 stud) | 80 (8 stud) | 90 (8 stud) | 100 (8 stud) |

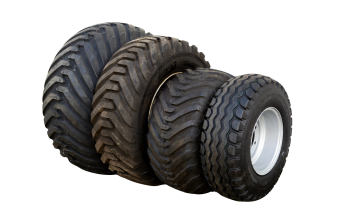

| Wheels | 11.5/80-15.3 | 400/60-15.5 | 400/55-22.5 | 500/45-22.5 | 500/60-22.5 | 560/60-22.5 |
