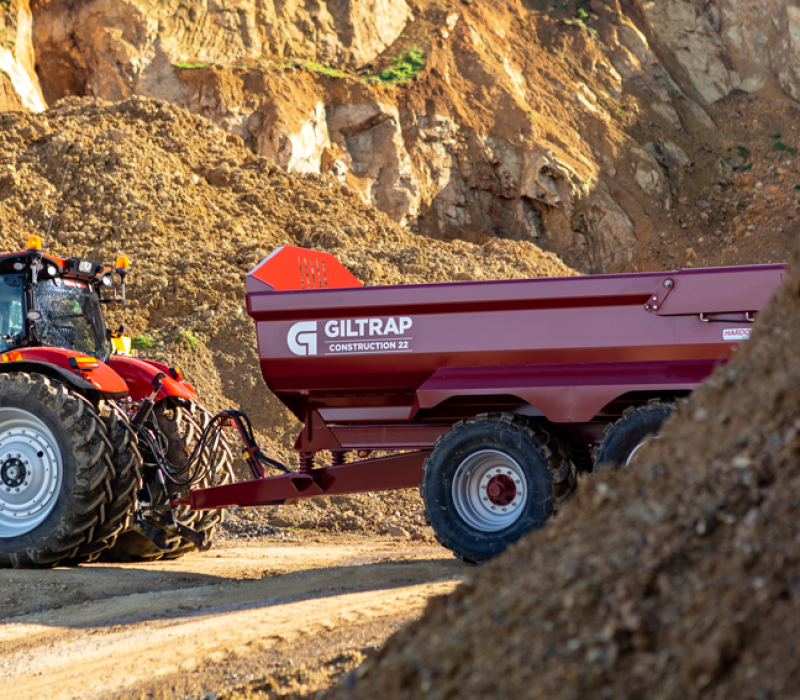

Designed specifically for agricultural contracting, heavy construction and earthworks. The CS22 provides a cost effective solution and is a serious performer in soft or difficult terrain where high productivity is a must. The high volume Hardox rock body, drawbar suspension and tough construction will handle the most relentless jobs.
No products found.
Key Features
- Heavy duty construction
- Large cubic capacity

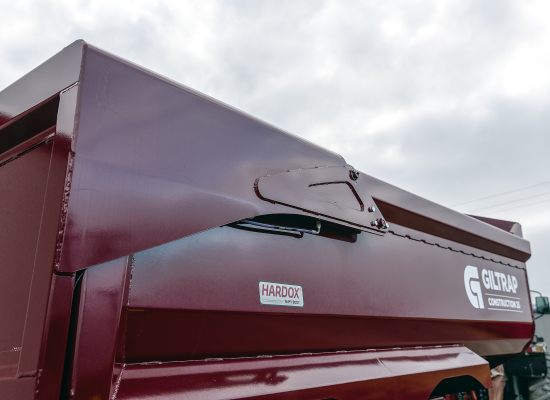

- 6mm Hardox steel body
- Sprung drawbar

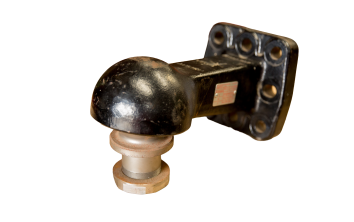

- 25 tonne rated swivel towing eye
- 4-way pivot on the ram base mount to prevent side-loading damage
- Hydraulic brakes (front axles)

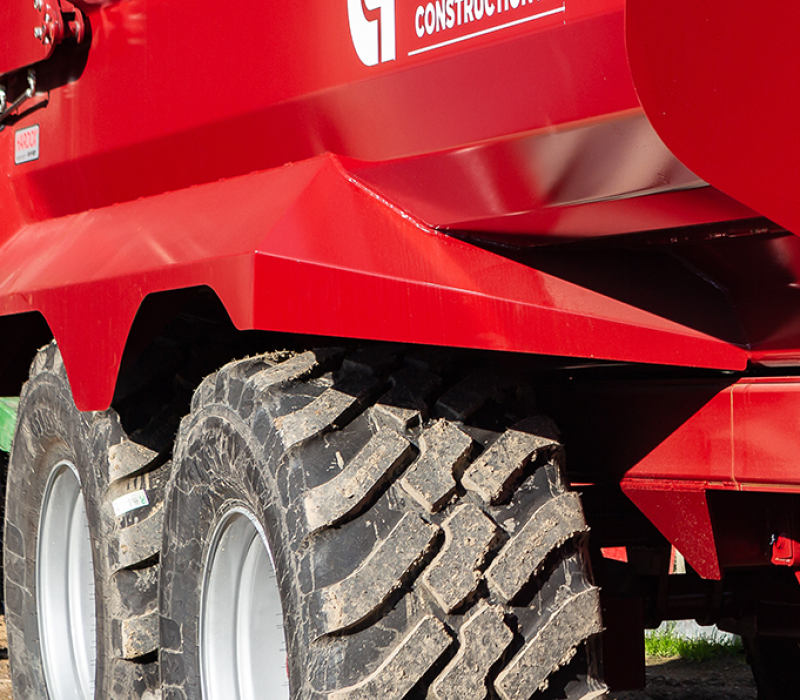

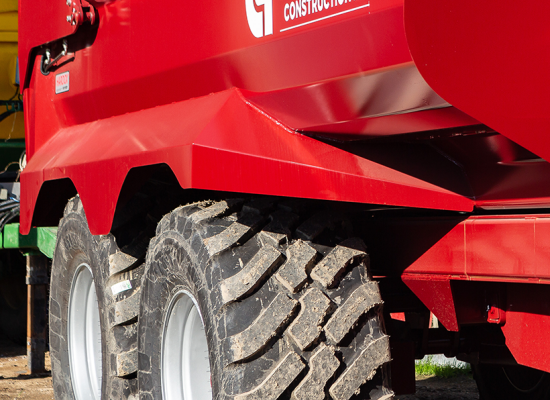

- Mudguards
- Hydraulic lift high-clearance taildoor
- Hydraulic jack stand

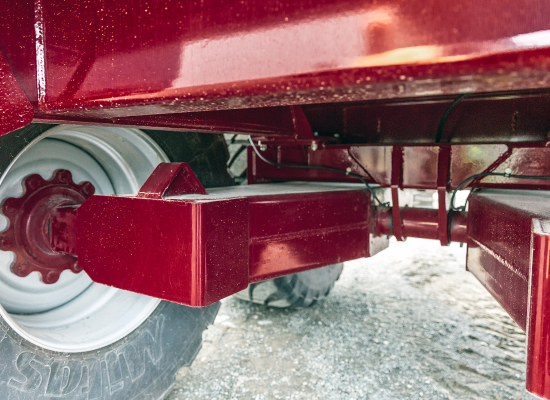

- Bushed tandem axles
- Maintenance safety stay

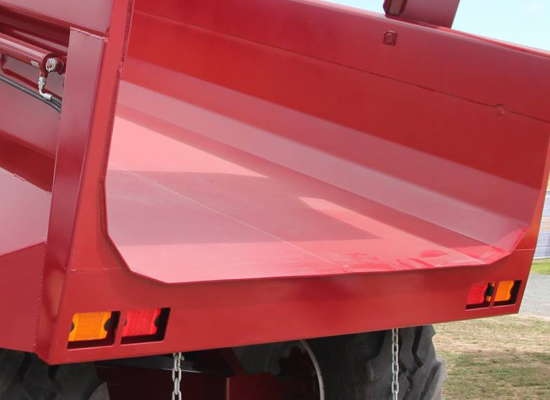

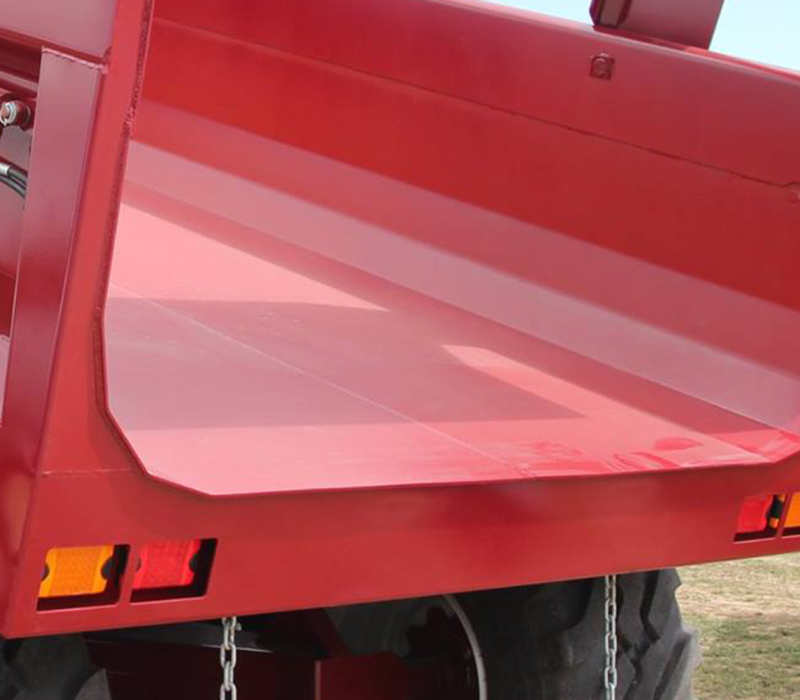

- LED lights

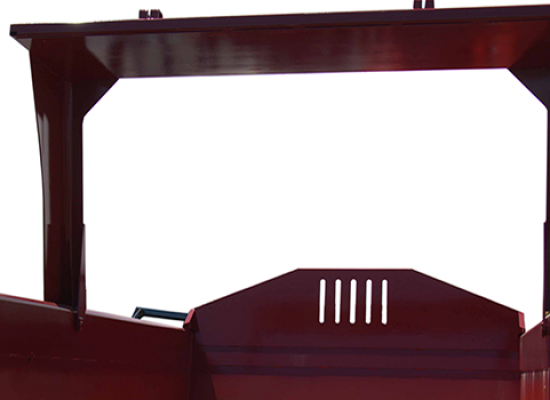

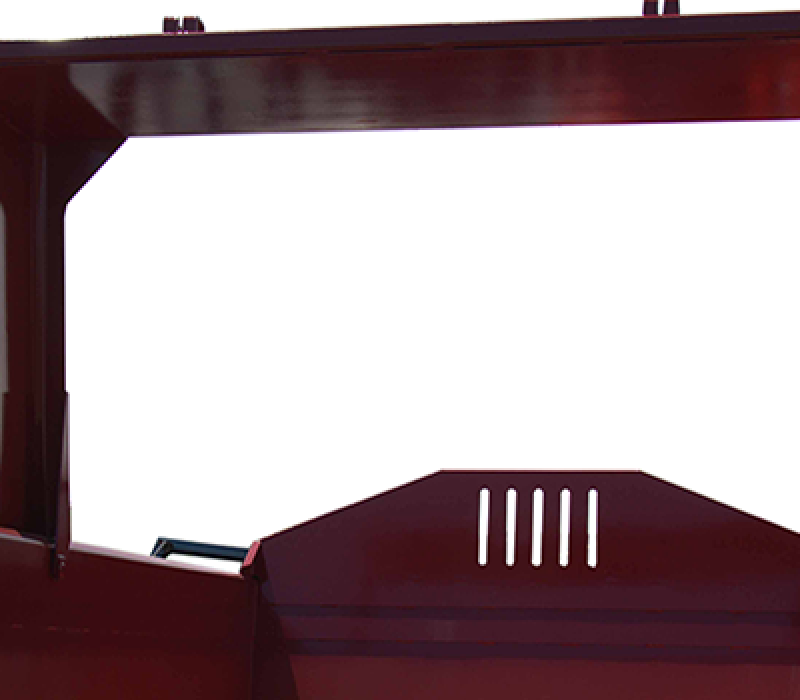

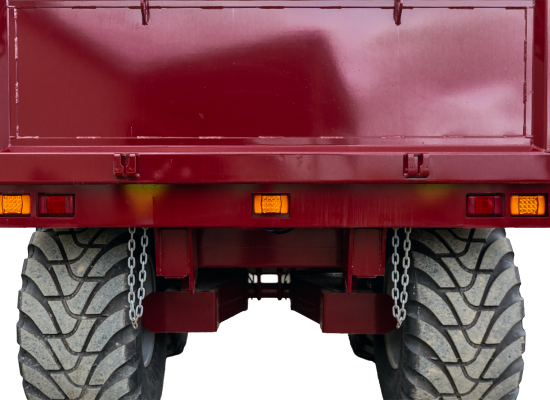

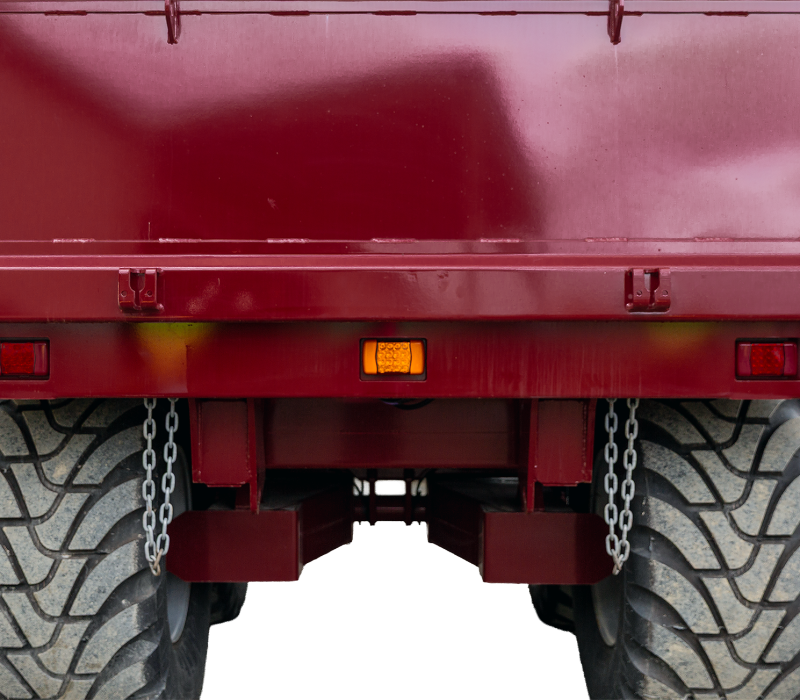

High lift, high clearance tail door with spreading chains

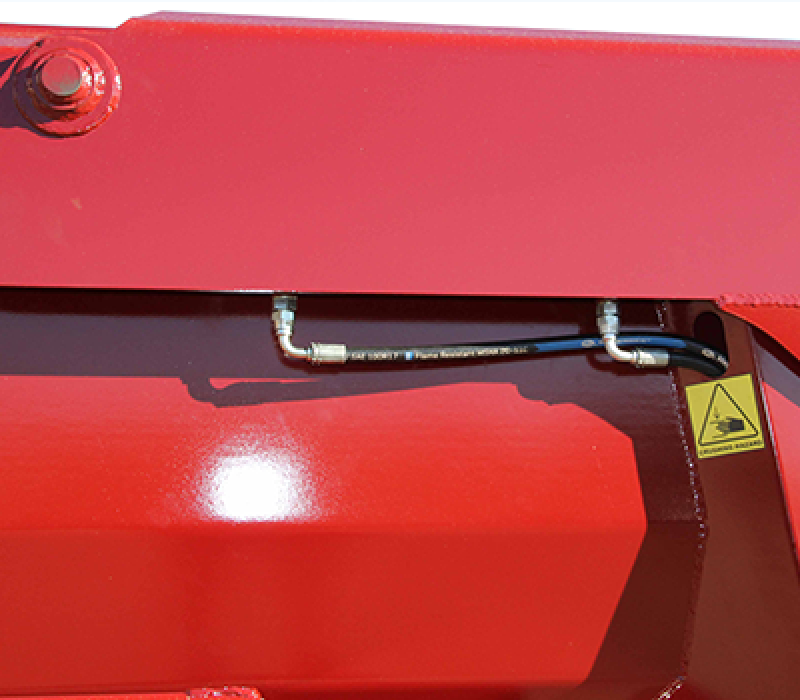

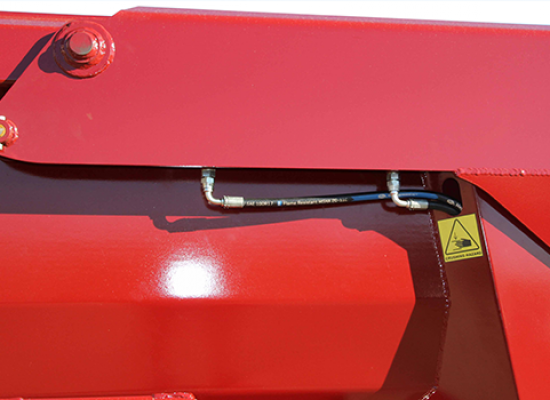

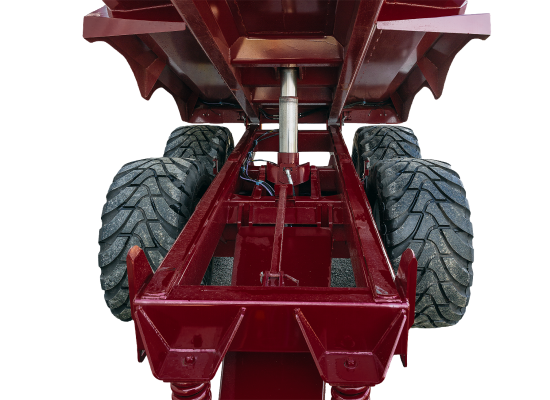

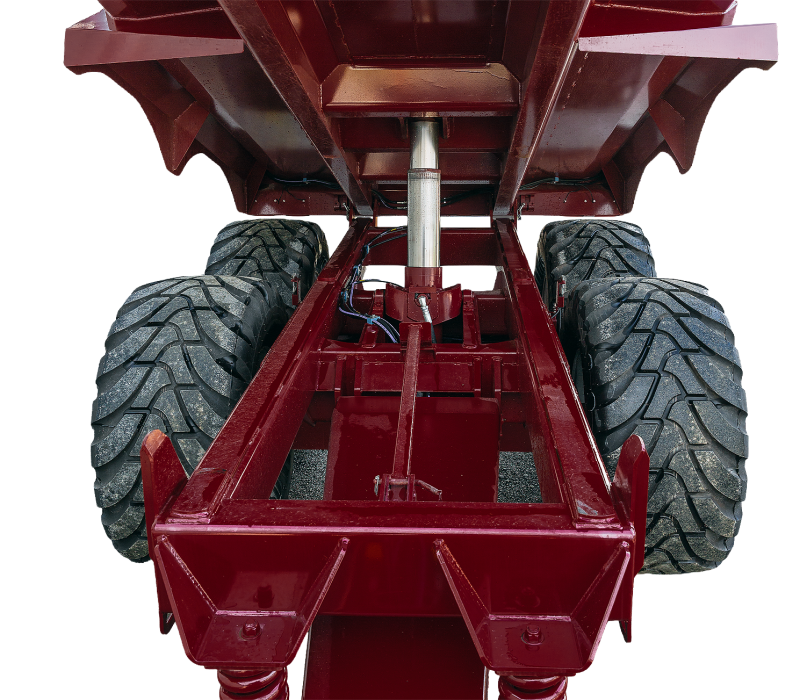

Hydraulic lift cylinder is protected from digger buckets and other hazards

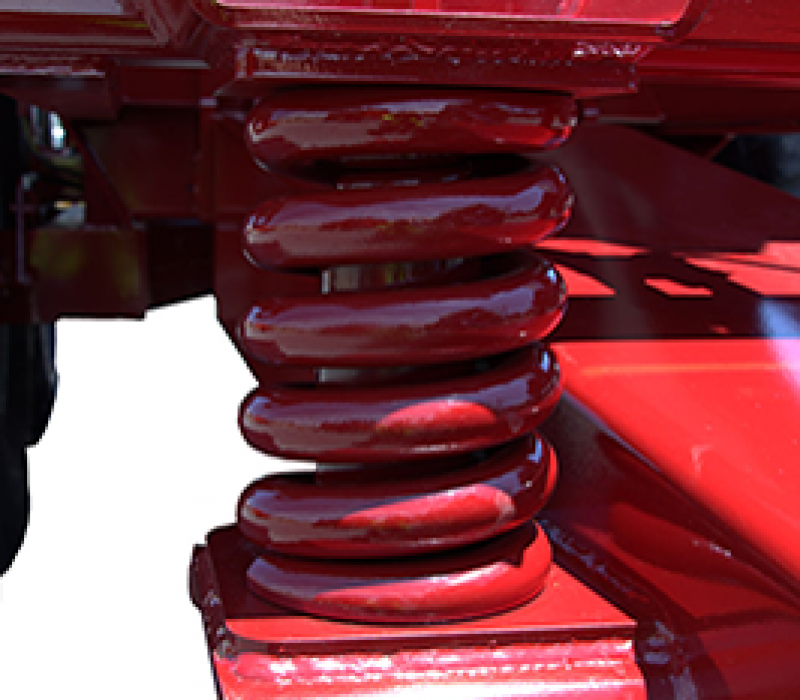

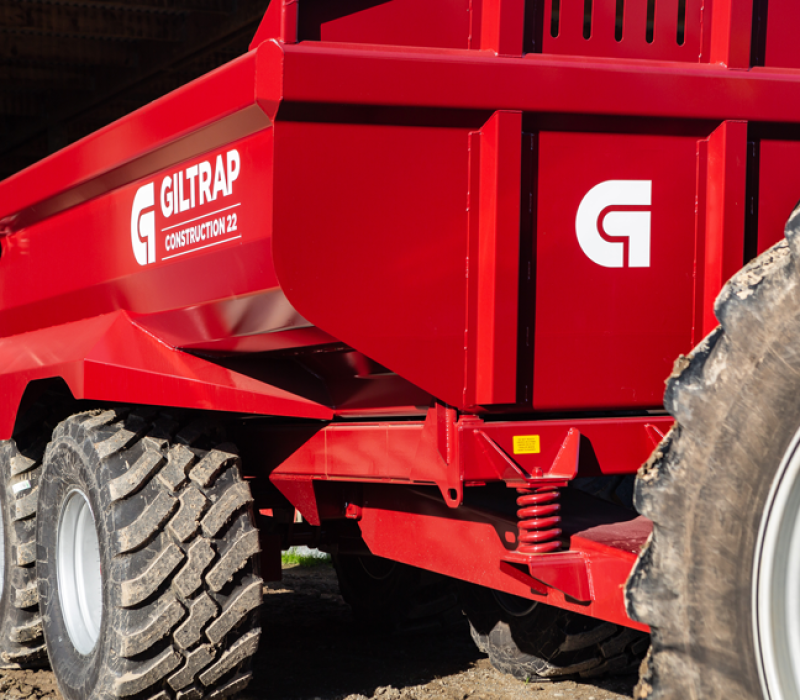

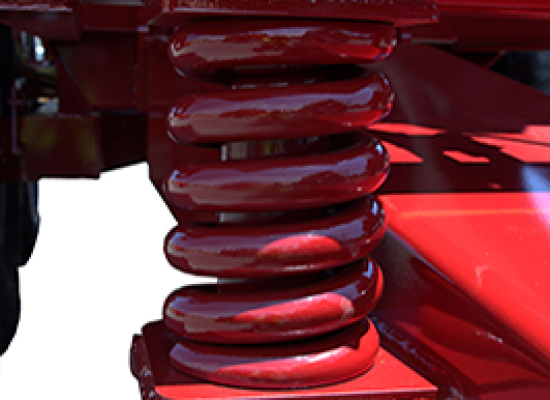

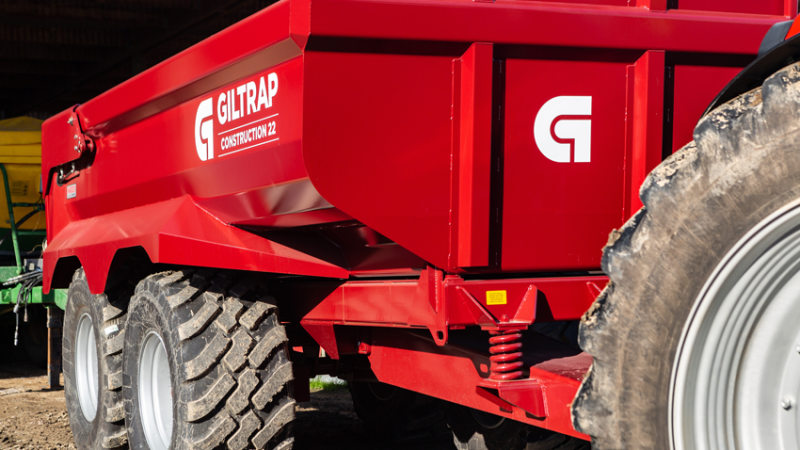

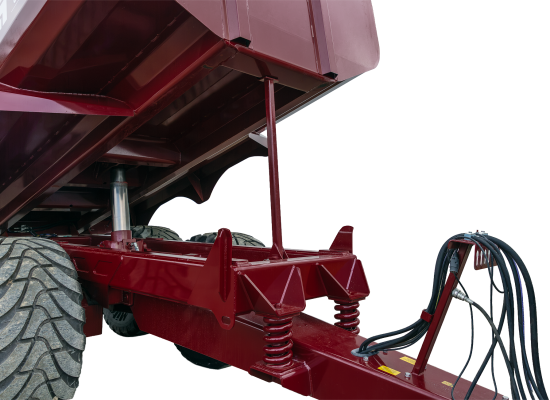

Sprung drawbar

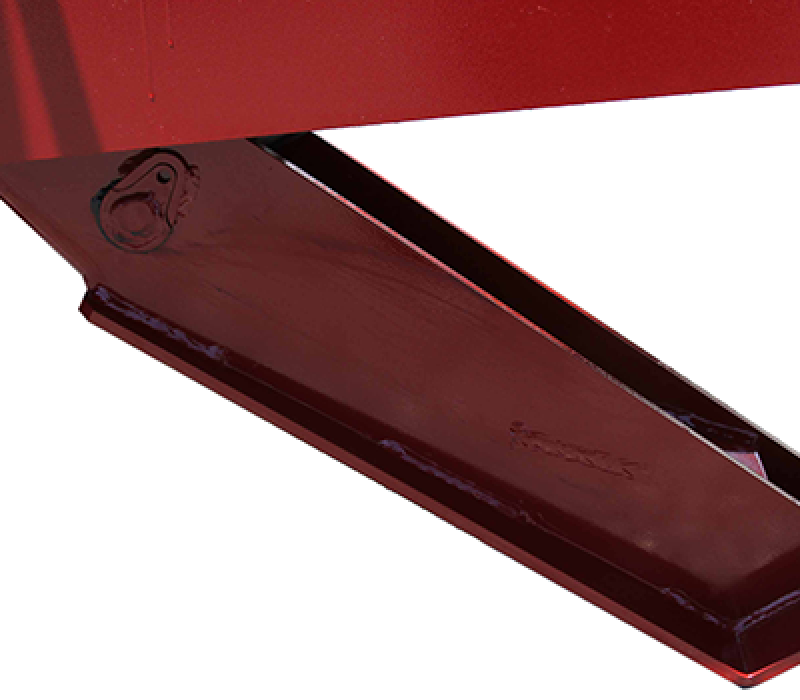

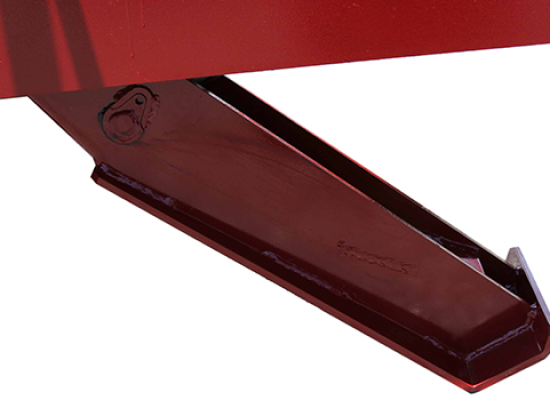

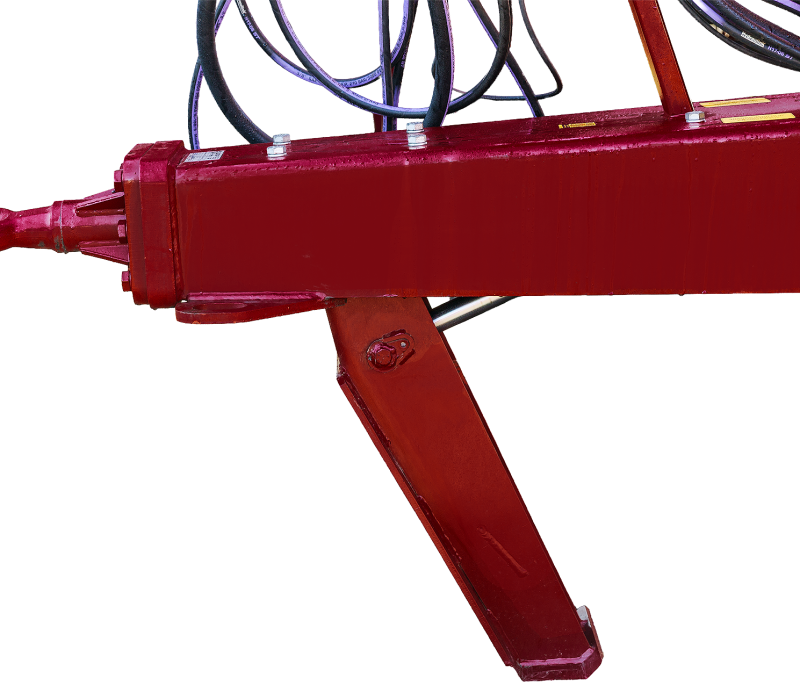

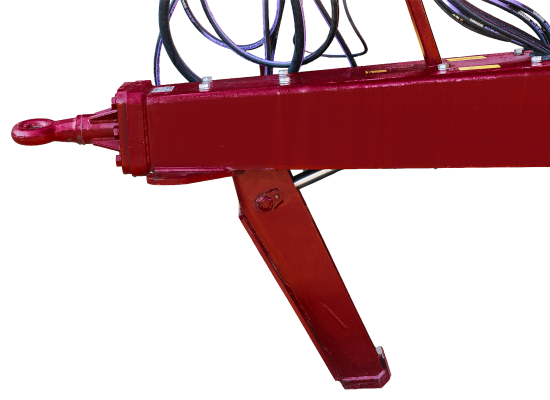

Hydraulically operated park stand

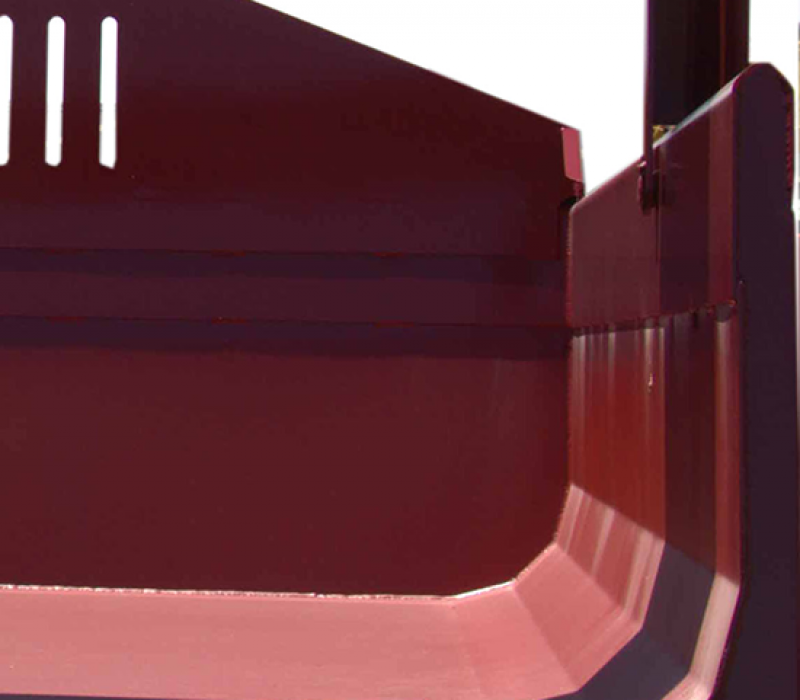

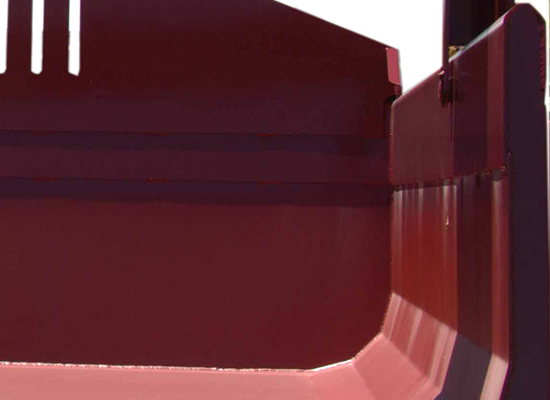

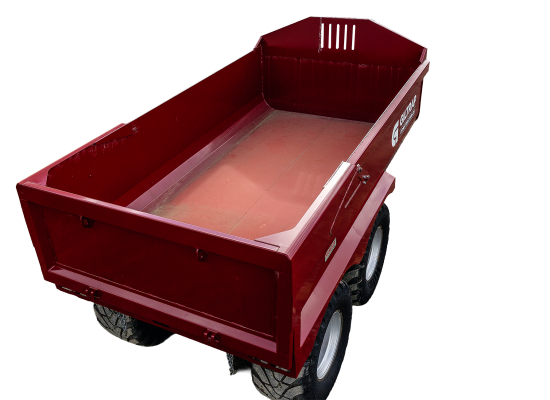

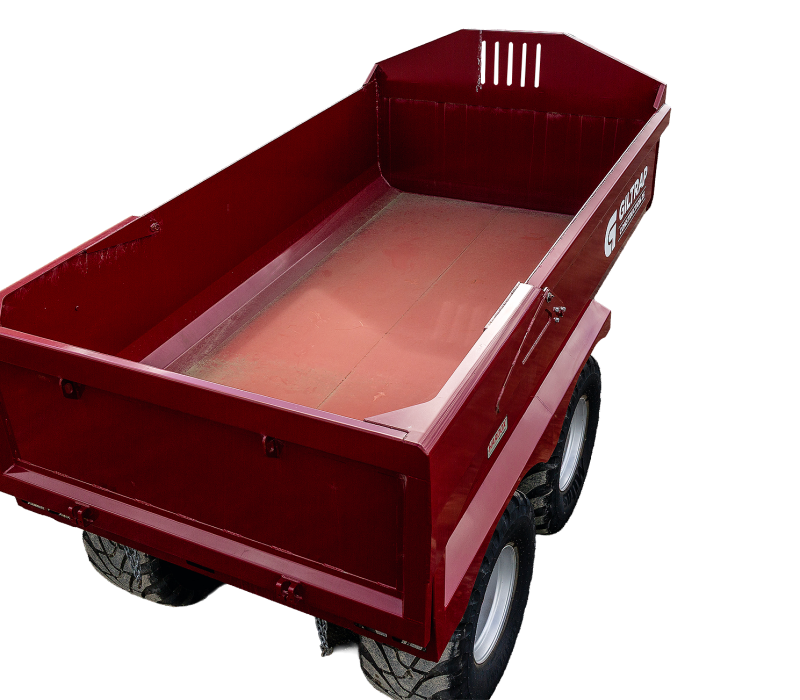

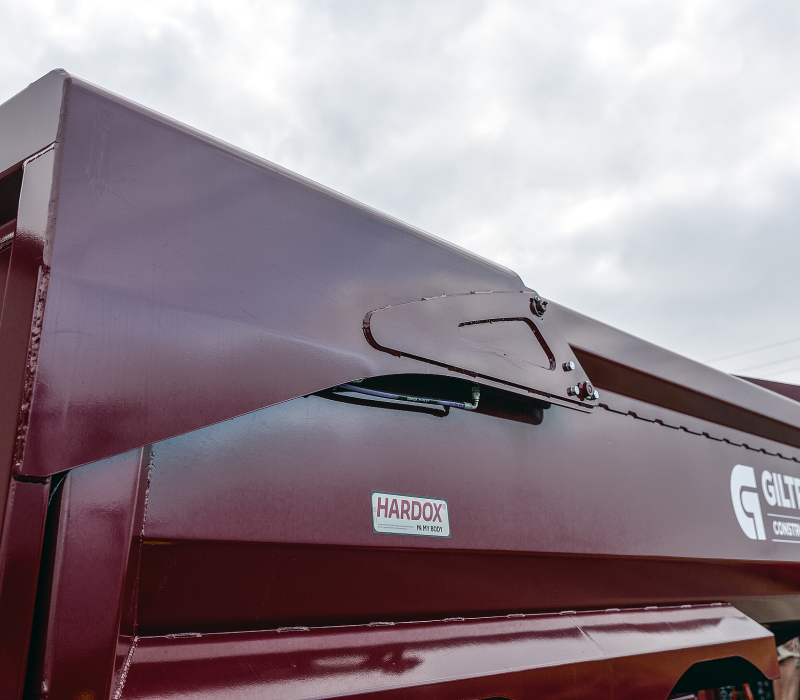

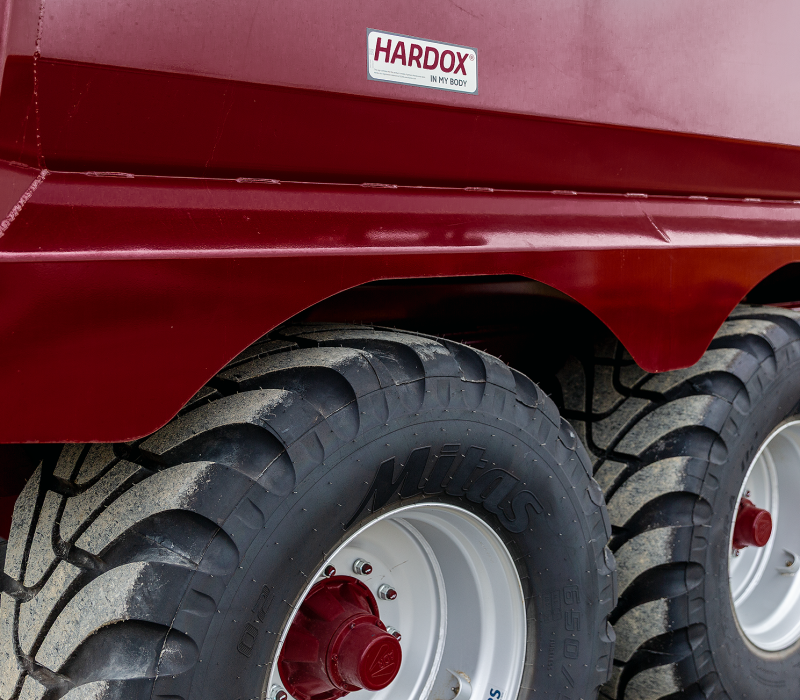

6mm Hardox bin, with wide base

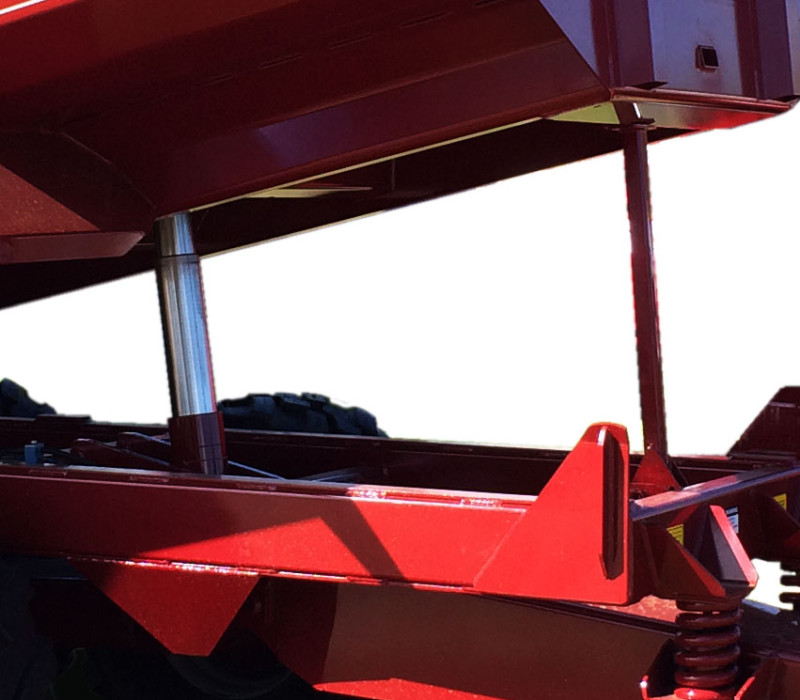

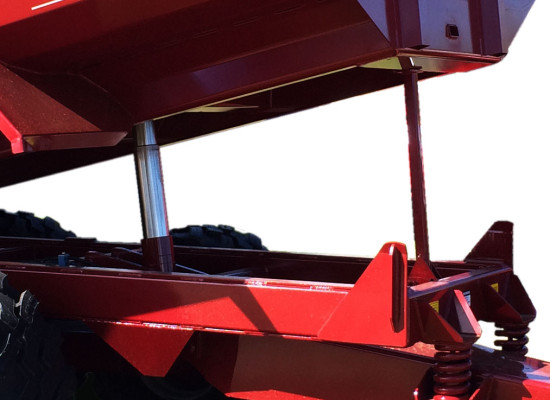

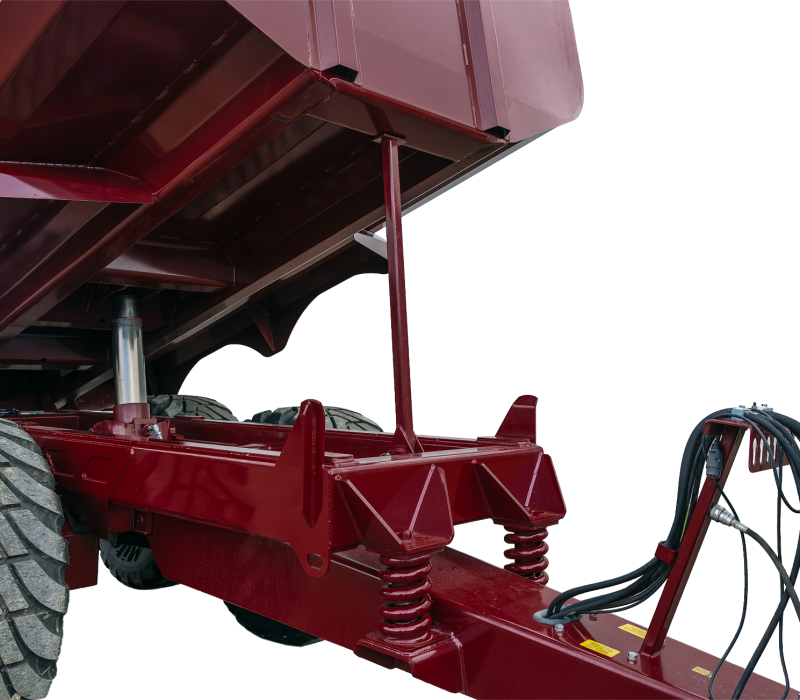

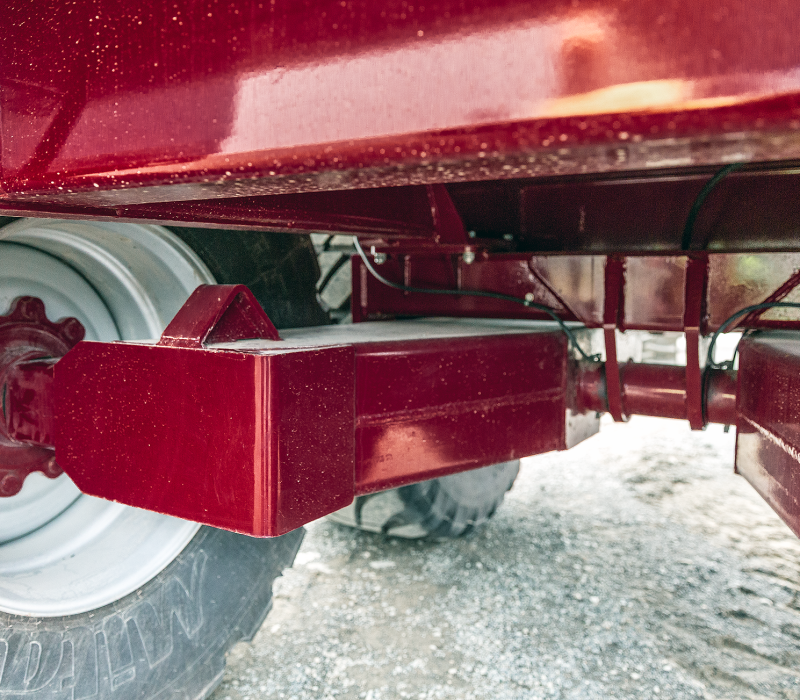

Safety / maintenance stands - fitted as a standard feature

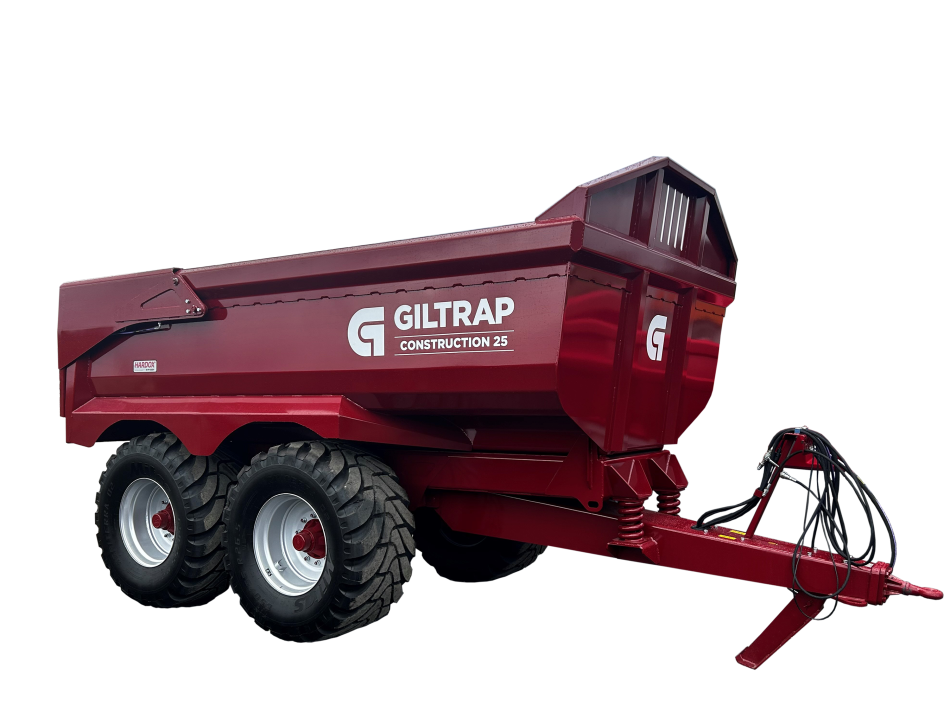

Construction Series Specifications
| CS17 | CS20 | CS22 | CS25 | |
|---|---|---|---|---|
| Overall width (m) | 2.872 | 2.872 | 2.872 | 2.872 |
| Overall height (m) | 2.710 | 2.802 | 2.882 | 3.108 |
| Overall length (m) | 6.030 | 6.224 | 6.339 | 6.354 |
| Cubic capacity (m³) | 8.5 | 10 | 11 | 12.5 |
| Lift Capacity (t) | 17 | 20 | 22 | 25 |
| Tare weight (kg) | 4760 | 5320 | 6080 | 7020 |
| Axle size (mm) | 100 | 100 | 100 | 150 |
| Tyres | 560/60R22.5 radials | 560/60R22.5 radials | 560/60R22.5 radials | 650/55R22.5 radials |
| Brakes | Front axle | Front axle | Front axle | Front axle |
| Ram type | 4 stage | 4 stage | 4 stage | 4 stage |
| Ram oil capacity (l) | 22.2 | 20.6 | 29.7 | 29.7 |
| Tipping angle | 55° | 55° | 55° | 55° |
| Tipping clearance (mm) | 1070 | 1070 | 1090 | 1200 |
| Lights | Large LED | Large LED | Large LED | Large LED |
| Sprung drawbar | Standard | Standard | Standard | Standard |

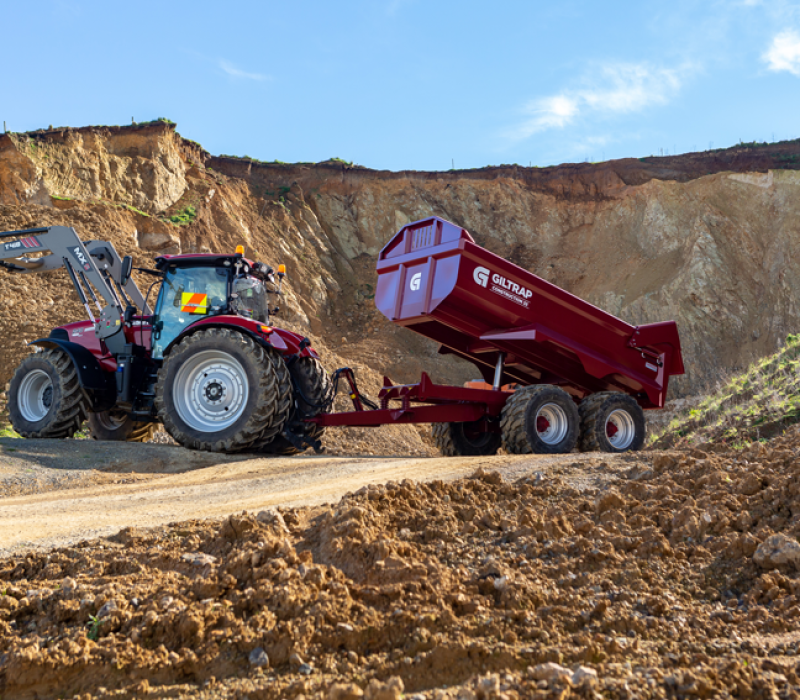

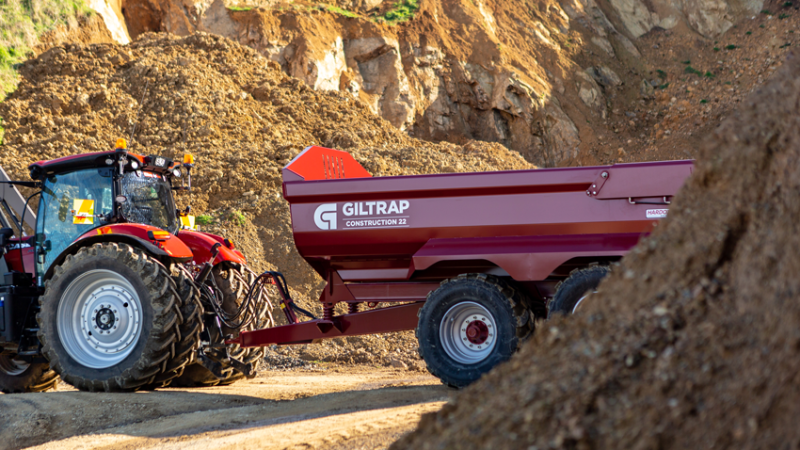

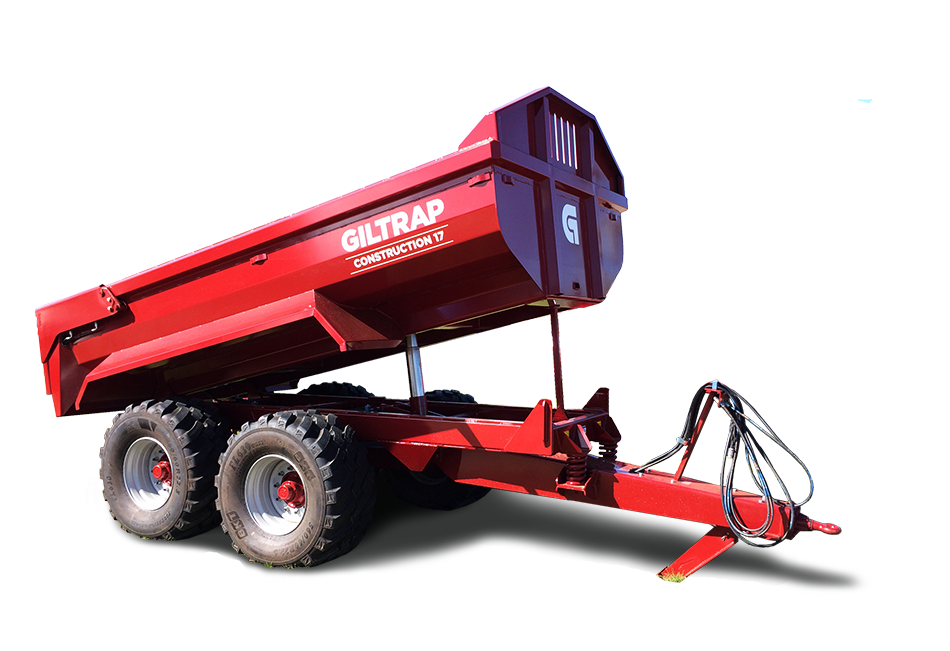

CS17 At Work
