Designed specifically for agricultural contracting, heavy construction and earthworks. The Construction Series provides a cost effective solution and is a serious performer in soft or difficult terrain where high productivity is a must.
The high volume Hardox rock body, sprung drawbar suspension and tough construction will handle the most relentless jobs.
No products found.
- Heavy duty construction
- Extended front headboard
- Large cubic capacity
- 25 tonne rated swivel towing eye
- 4-way pivot on the ram base mount to prevent side-loading damage
- Hydraulic brakes (front axles)
- Bushed tandem axles

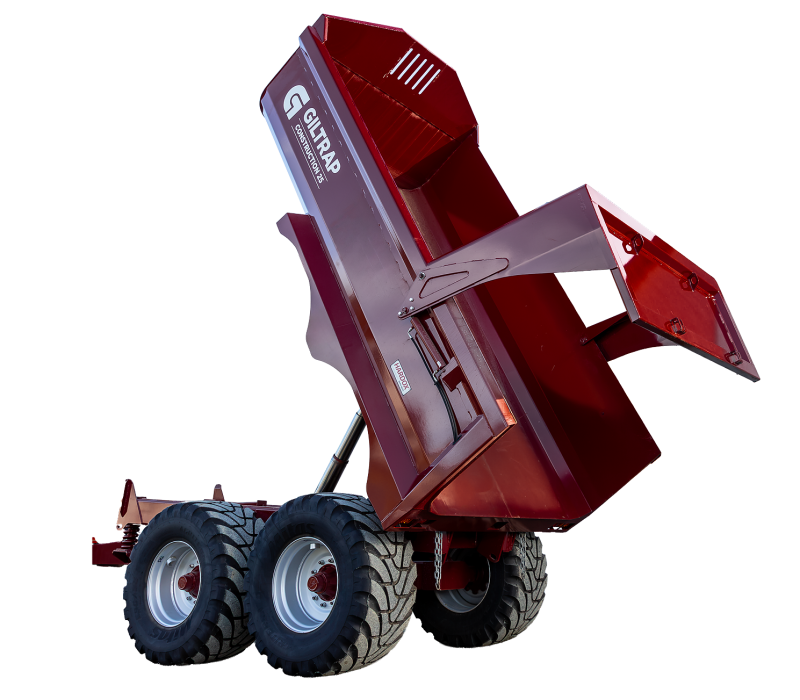

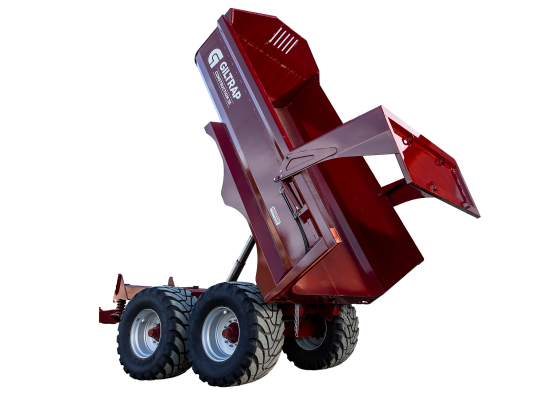

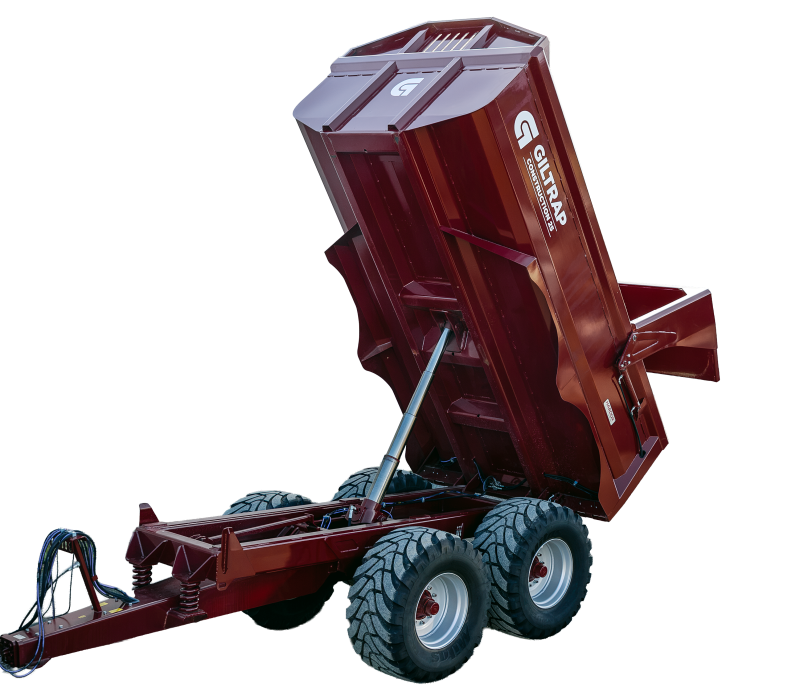

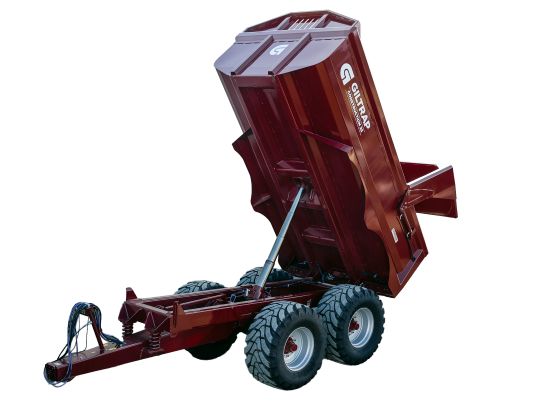

STEEP TIPPING
A steep 57-degree tip angle makes sure everything slides off, and our rear pivot placement gives you the best tipping clearance when the deck is raised. Great for building stockpiles and means you won't get stuck or bulldoze the ground.
STRENGTH
Decades of design experience have gone into developing our structural chassis so you can rely on it for decades of use

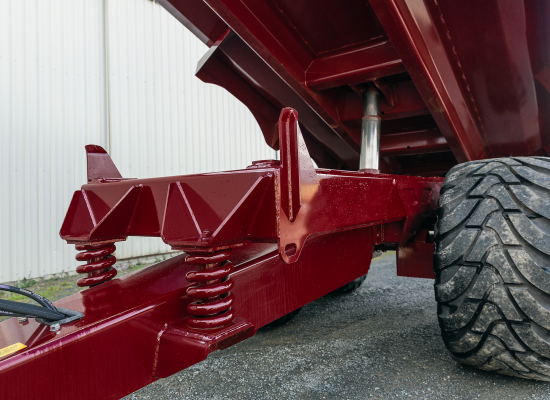

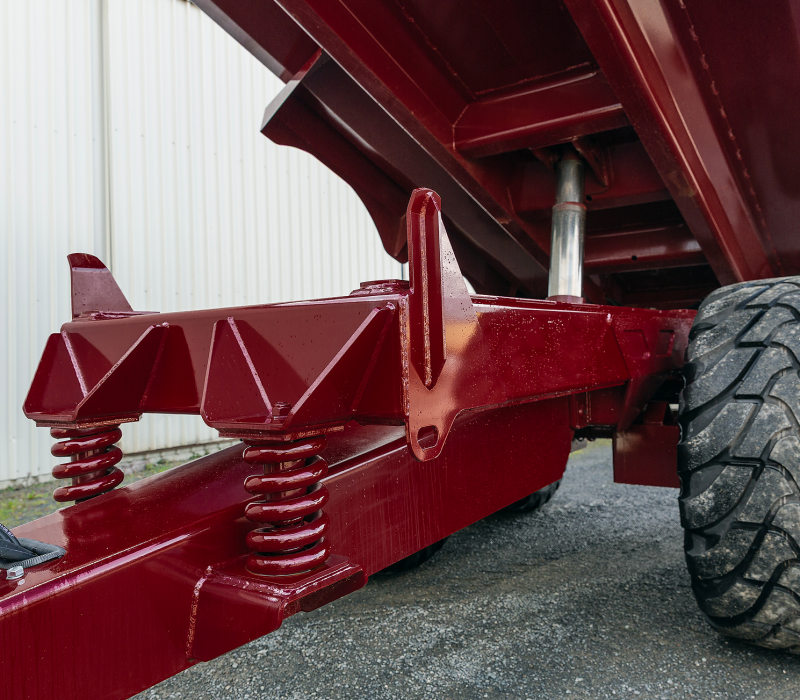

DRIVER COMFORT
Shock loading on the tractor drawbar is reduced with a mechanically sprung trailer drawbar ensuring a smooth power transfer from tractor to trailer and greater comfort

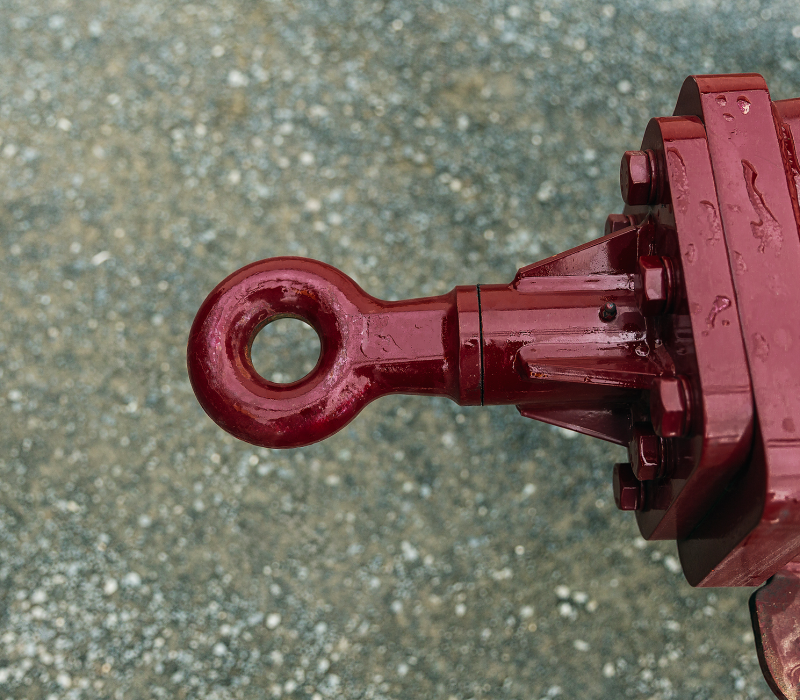

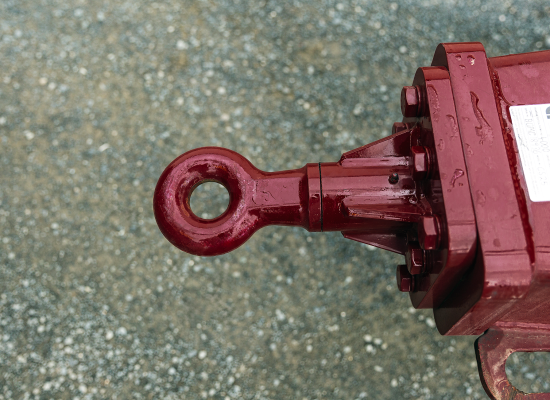

HITCH SAFETY
25 tonne rated swivel towing eye. It is flange mounted so it is simple to swap for a K80 ball hitch or easily replace for maintenance

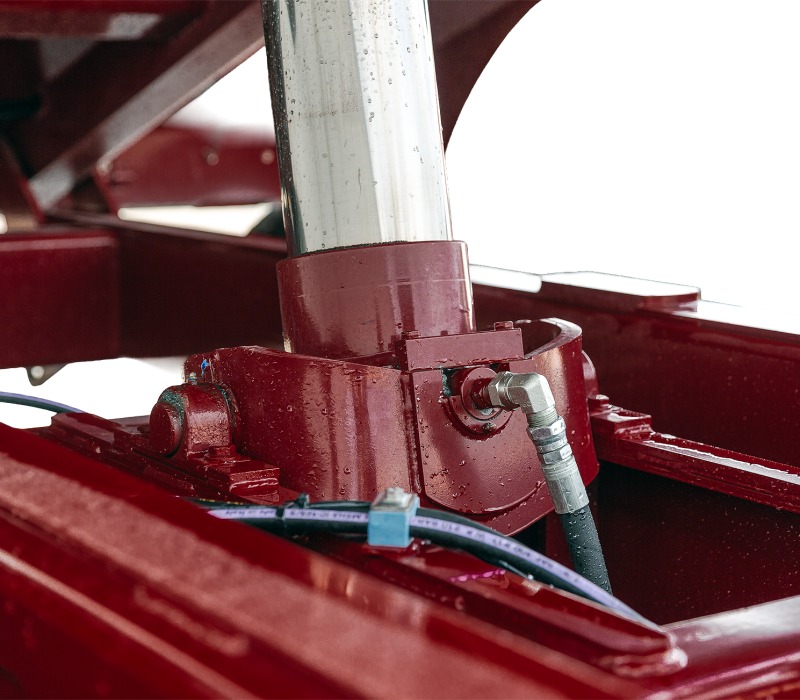

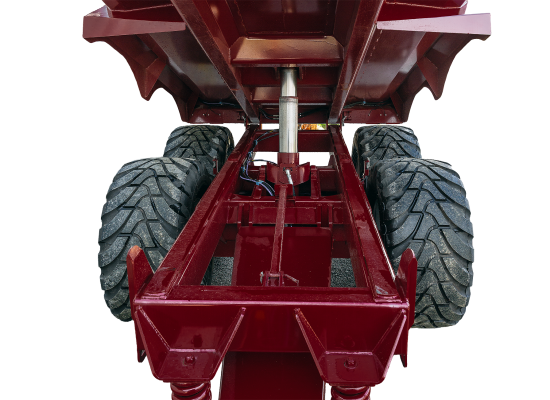

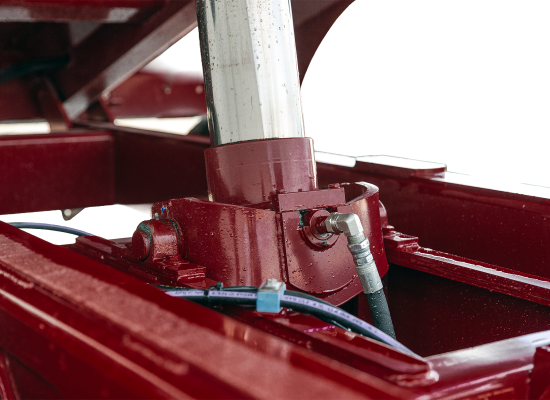

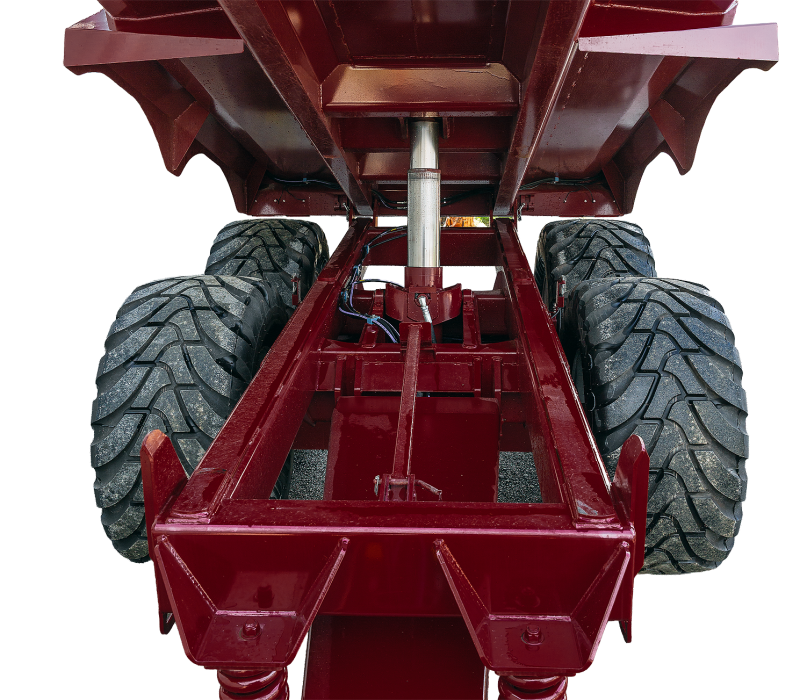

SWIVEL RAM MOUNT
Our two-way base mounts protect the long multi-stage rams from damaging side loads for extended service life

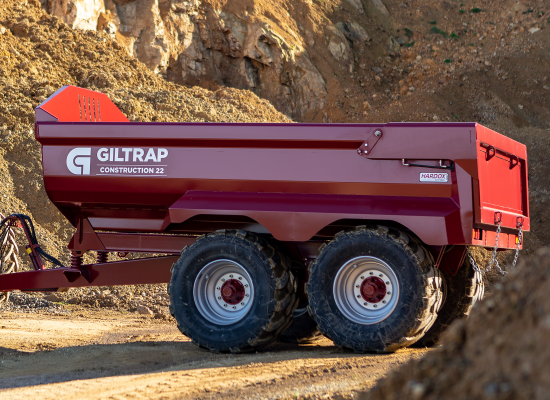

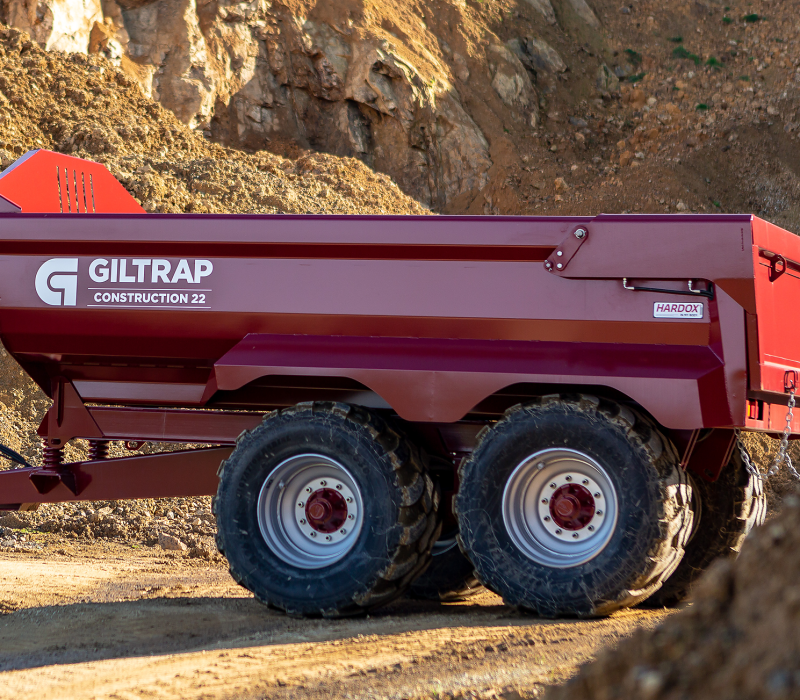

HARDOX ROCK BODY
Our 6 and 8mm HARDOX450 plate construction gives you a virtually indestructible body
LOAD SAFETY

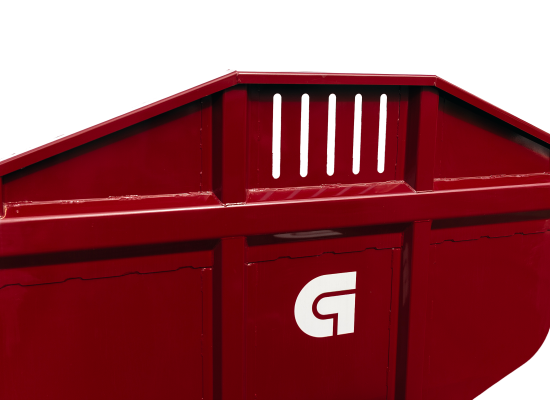

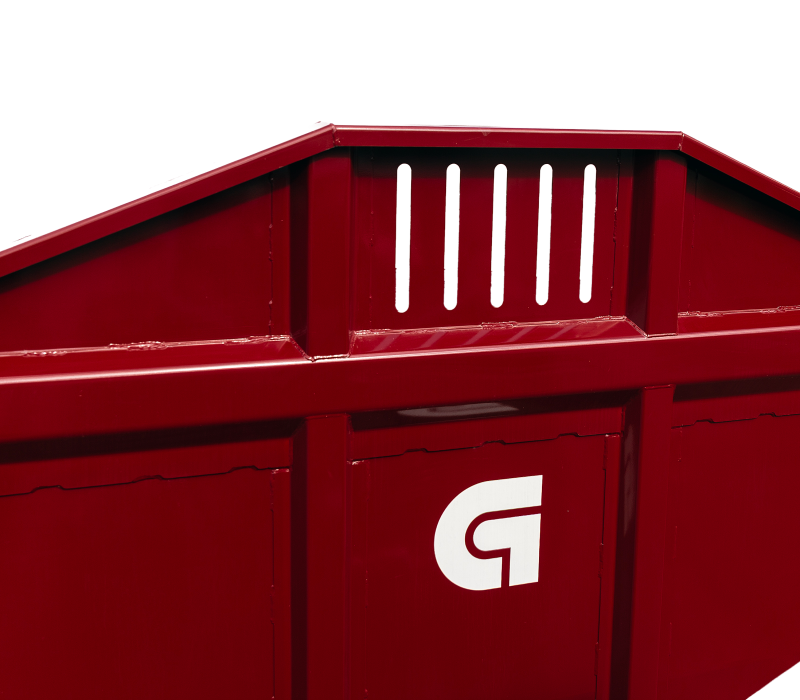

The extended front headboard stops rocks and spoil falling off the front of the trailer
HEAPS OF CLEARANCE
The hydraulic high lift tail door has massive clearance to unload rocks, tree stumps, and sticky loads cleanly

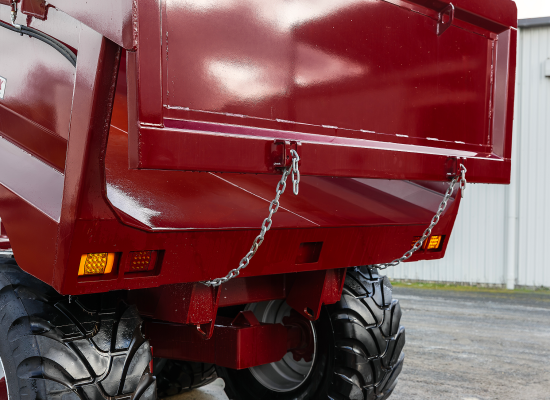

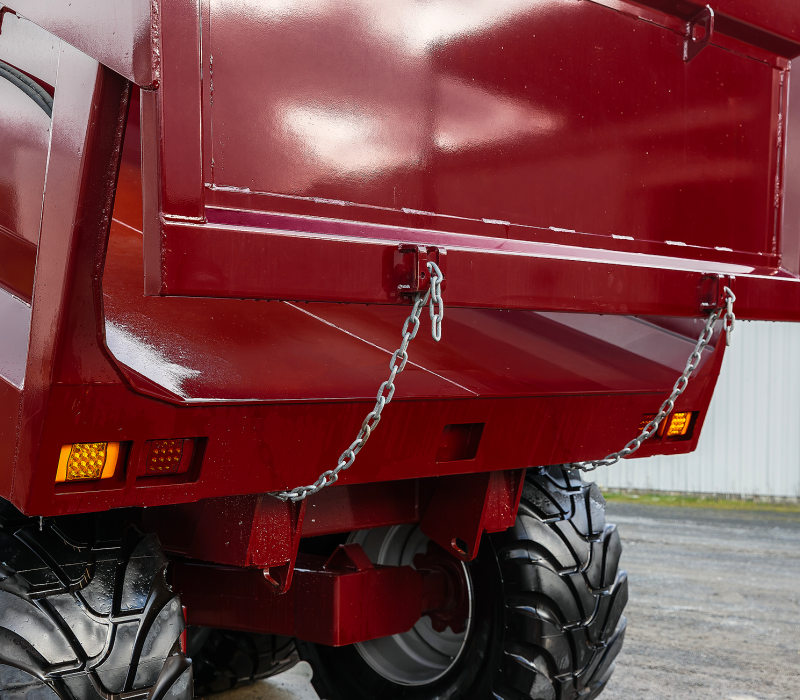

CONTROLLED SPREADING
Spreading chains are standard on every trailer allowing you to control the flow rate of gravel, sand and shingle for building and repairing tracks and roads

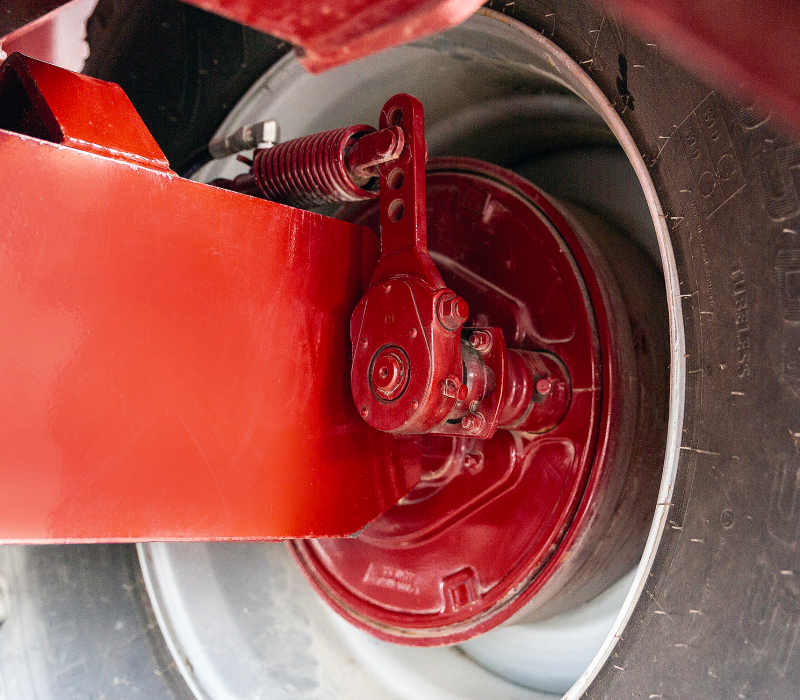

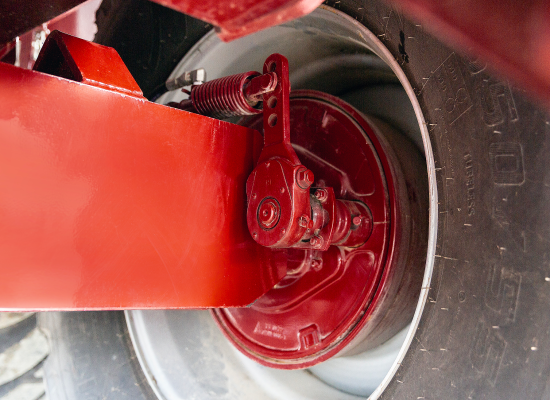

HYDRAULIC BRAKES
Every trailer has braked front axles as standard for operator safety. Optionally add rear brakes for extra peace of mind

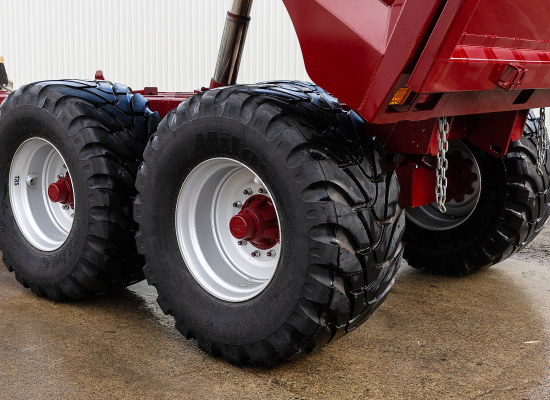

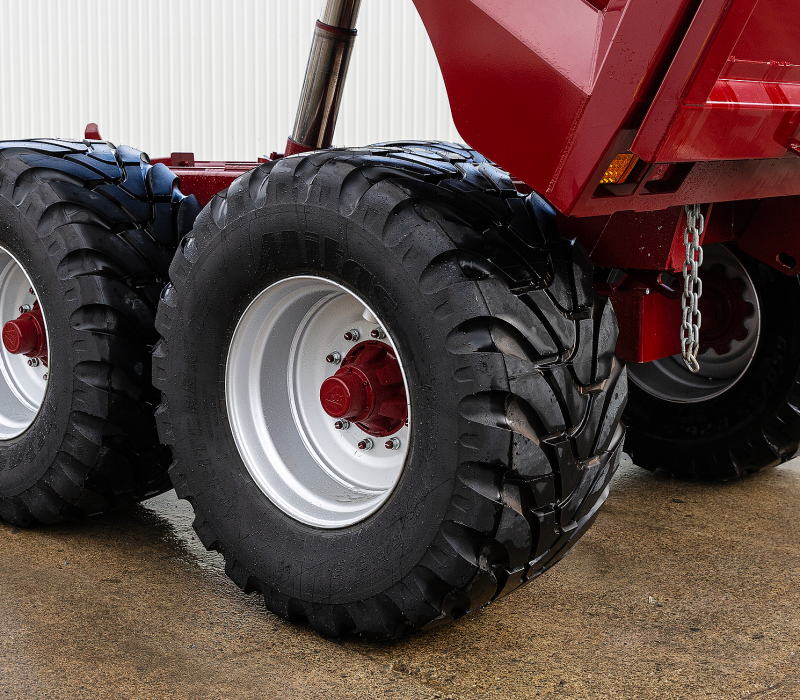

OVERSIZE RADIAL WHEELS
10 stud wheels with low profile 22.5" or 26.5" radial tyres offer plenty of grip in slippery conditions and long-life on high mileage jobs
Construction Series Specifications
| CS17 | CS20 | CS22 | CS25 | |
|---|---|---|---|---|
| Overall width (m) | 2.872 | 2.872 | 2.872 | 2.872 |
| Overall height (m) | 2.710 | 2.802 | 2.882 | 3.108 |
| Overall length (m) | 6.030 | 6.224 | 6.339 | 6.354 |
| Volume (m³) | 8.5 | 10 | 11 | 12.5 |
| Lift Capacity (t) | 17 | 20 | 22 | 25 |
| Tare weight (kg) | 4760 | 5320 | 6080 | 7020 |
| Axle size (mm) | 100 | 100 | 100 | 150 |
| Tyres | 560/60R22.5 radials | 560/60R22.5 radials | 560/60R22.5 radials | 650/55R22.5 radials |
| Brakes | Front axle | Front axle | Front axle | Front axle |
| Ram type | 4 stage | 4 stage | 4 stage | 4 stage |
| Ram oil capacity (l) | 22.2 | 20.6 | 29.7 | 29.7 |
| Tipping angle | 55° | 55° | 55° | 55° |
| Tipping clearance (mm) | 1070 | 1070 | 1090 | 1200 |
| Lights | Large LED | Large LED | Large LED | Large LED |
| Sprung drawbar | Standard | Standard | Standard | Standard |
